Tanis® 0.190" Diameter 500 Grit Silicon Carbide Twisted Brush
Tanis® 0.190" Diameter 500 Grit Silicon Carbide Twisted Brush
SKU:TWI-69c263
Achieve precise deburring with Tanis® 0.190" Diameter Silicon Carbide Twisted Brush.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Tanis® 0.190" Diameter 500 Grit Silicon Carbide Twisted Brush
$24.99
Quantity: 1
Claim Your Seller Account
Tanis® 0.190" Diameter 500 Grit Silicon Carbide Twisted Brush
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

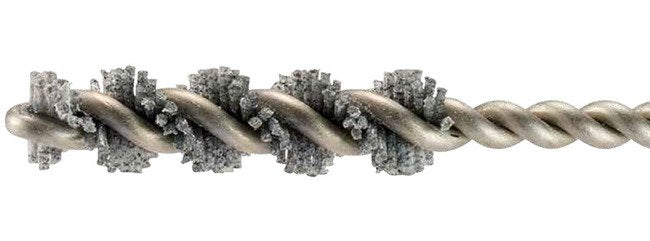

Achieve precise deburring and cleaning with the Tanis® 0.190" Diameter 500 Grit Silicon Carbide Twisted Brush. This single stem, single spiral brush features a 0.018" filament diameter for ultra-fine results without altering bore dimensions or surface finishes. Designed for use with power tools or manual operations, it ensures a side-wiping action for efficient performance. With a stem diameter of 0.087" and an overall length of 5 inches, this brush is ideal for intricate tasks while maintaining durability and reliability.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
0.190 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.018 in
Specifications Hole Diameter Decimal
0.188 in | 4.736 mm
Specifications Hole Diameter Fractional
3/16 in
Specifications Material
Silicon Carbide
Specifications Overall Length
5 in
Specifications Size
500 grit
Specifications Stem Diameter
0.087 in
Twisted Brush Stem Construction

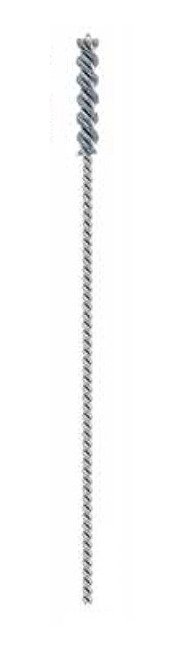

Single stem, single spiral tube brush with short handle and loop end.
