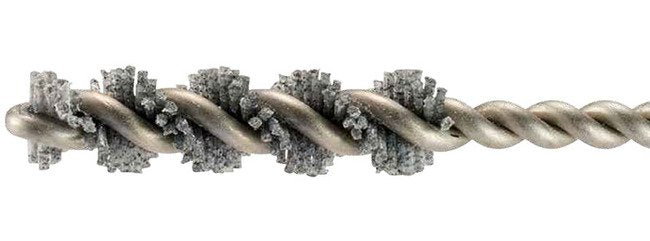

Tanis® 0.245 Inch Silicon Carbide Abrasive Nylon Twisted Brush
Tanis® 0.245 Inch Silicon Carbide Abrasive Nylon Twisted Brush
SKU:TWI-77c33d
Achieve precise and efficient ultra-fine deburring with Tanis® 0.245 Inch Silicon Carbide Twisted Brush. Ideal for power tools or manual use, this brush ensures optimal cleaning without altering surfaces.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 0.245 Inch Silicon Carbide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 0.245 Inch Silicon Carbide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tanis® 0.245 Inch Silicon Carbide Abrasive Nylon Twisted Brush is a high-quality tool designed for ultra-fine deburring of internal holes. With a precise 500 grit size and 0.018-inch filament diameter, this brush ensures optimal cleaning without altering bore dimensions or surface finishes. Ideal for both power tools and manual applications, its single stem, single spiral construction with a continuous end offers efficient side-wiping action. The brush's stem is carefully constructed to minimize deflections and bending, providing a safe operating speed range of 100-500 RPM. Enhance precision and performance with Tanis® brushes.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
0.245 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.018 in
Specifications Hole Diameter Decimal
0.234 in | 5.953 mm
Specifications Hole Diameter Fractional
15/64 in
Specifications Material
Silicon Carbide
Specifications Overall Length
5 in
Specifications Size
500 grit
Specifications Stem Diameter
0.115 in
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
