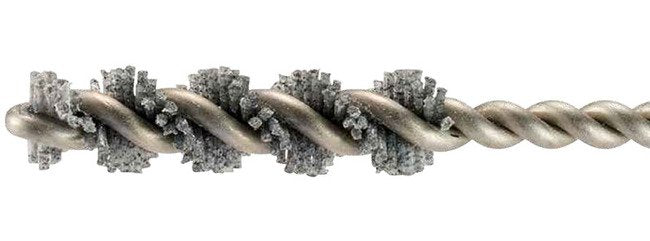

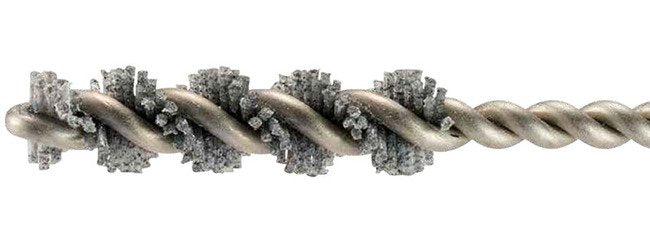

Tanis® 0.260" 600 Grit Aluminum Oxide Abrasive Nylon Twisted Brush
Tanis® 0.260" 600 Grit Aluminum Oxide Abrasive Nylon Twisted Brush
SKU:TWI-93a819
Achieve ultra-fine deburring with this Aluminum Oxide Abrasive Nylon Twisted Brush. Perfect for cleaning internal holes without altering dimensions.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Tanis® 0.260" 600 Grit Aluminum Oxide Abrasive Nylon Twisted Brush
$24.99
Quantity: 1
Claim Your Seller Account
Tanis® 0.260" 600 Grit Aluminum Oxide Abrasive Nylon Twisted Brush
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Achieve ultra-fine deburring with the Tanis® 0.260" 600 Grit Aluminum Oxide Abrasive Nylon Twisted Brush. Ideal for cleaning internal holes without altering dimensions. This single stem, single spiral brush offers precise cleaning for various applications, ensuring bore integrity and surface finish preservation.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
0.260 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.012 in
Specifications Hole Diameter Decimal
0.250 in | 6.350 mm
Specifications Hole Diameter Fractional
1/4 in
Specifications Material
Aluminum Oxide
Specifications Overall Length
5 in
Specifications Size
600 grit
Specifications Stem Diameter
0.115 in
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
