Tanis® 1" Brass Twisted Heavy-Duty Burr Brush
Tanis® 1" Brass Twisted Heavy-Duty Burr Brush
SKU:TWI-6f4992
Precision-engineered Tanis® 1" Brass Twisted Heavy-Duty Burr Brush for efficient deburring, polishing, and cleaning in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Tanis® 1" Brass Twisted Heavy-Duty Burr Brush
$24.99
Quantity: 1
Claim Your Seller Account
Tanis® 1" Brass Twisted Heavy-Duty Burr Brush
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

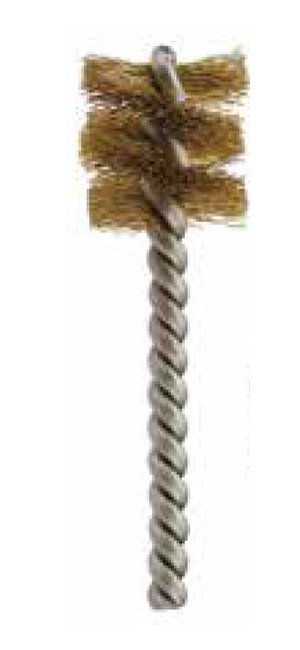

The Tanis® 1-inch Brass Twisted Heavy-Duty Burr Brush is a versatile tool designed for deburring, polishing, and cleaning inner bores of tubing, machined cylinders, and blind holes. Featuring a single stem, single spiral configuration with a continuous end, this durable brush works efficiently in both drill presses and hand power tools. With a precise 0.008-inch filament diameter and sturdy brass construction, it ensures optimal performance and longevity. Suitable for institutional and government applications, this brush meets stringent procurement standards and offers reliable functionality in various industrial settings.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
1 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.008 in
Specifications Fill Material
Brass
Specifications Overall Length
3-1/2 in
Specifications Stem Diameter
0.248 in
