Tanis® 1 Inch 320 Grit Silicon Carbide Abrasive Nylon Twisted Brush
Tanis® 1 Inch 320 Grit Silicon Carbide Abrasive Nylon Twisted Brush
SKU:TWI-59cbcf
Achieve precision deburring and finishing with Tanis® 1 Inch Silicon Carbide Twisted Brush - ideal for tubular parts and drilled holes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 1 Inch 320 Grit Silicon Carbide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 1 Inch 320 Grit Silicon Carbide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

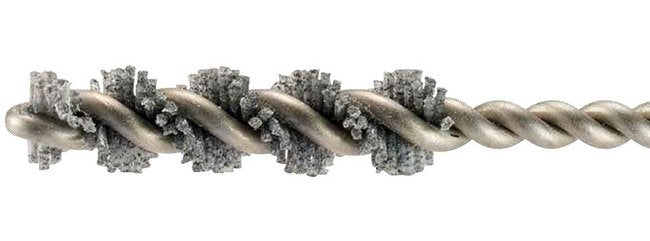

The Tanis® 1 Inch Silicon Carbide Abrasive Nylon Twisted Brush is a versatile tool designed for precision deburring and finishing in tubular component parts and drilled holes. With a durable construction of twisted filaments between four stem wires, this brush offers enhanced strength and density fill. Its 320 grit size and 0.022-inch filament diameter ensure optimal performance, making it ideal for use in CNC machine tools, drill presses, and manual machines. Recommended operating speeds and secure mounting guidelines ensure safe and efficient use. Additional diameters and grits are available upon request.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
1 in
Specifications Brush Length
2-1/2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.022 in
Specifications Material
Silicon Carbide
Specifications Overall Length
5-1/2 in
Specifications Size
320 grit
Specifications Stem Diameter
1/4 in
Twisted Brush Stem Construction
Filament is twisted between four stem wires, with two stem wires on each side for additional strength and higher density fill.
