Tanis® 1" Nylon Fill/Stainless Steel Back Strip Brush
Tanis® 1" Nylon Fill/Stainless Steel Back Strip Brush
SKU:STR-457788
Durable 1" Nylon Fill Strip Brush w/ Stainless Steel Backing for reliable industrial cleaning & sealing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 1" Nylon Fill/Stainless Steel Back Strip Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 1" Nylon Fill/Stainless Steel Back Strip Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

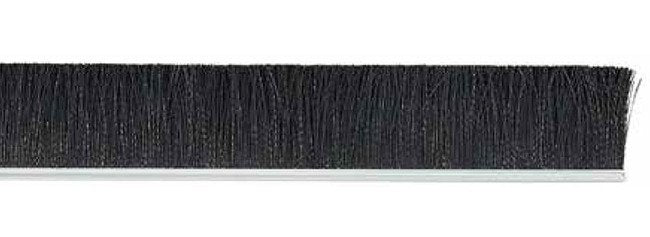

The Tanis® 1-inch Nylon Fill Strip Brush with Stainless Steel Backing offers durable crimped black nylon fill on a stainless steel back strip, meeting stringent industrial standards. With an overall trim length of 1 inch and an overall length of 72 inches, this brush provides reliable cleaning and sealing capabilities. Ideal for various applications and industries, the staple construction ensures quality and reliability for consistent performance.
Product Specifications
Accessories
Metal Back Strip HoldersPart Number - AH400412Overall Length - 12 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400424Overall Length - 24 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400436Overall Length - 36 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400448Overall Length - 48 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400460Overall Length - 60 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400472Overall Length - 72 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400484Overall Length - 84 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400496Overall Length - 96 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400812Overall Length - 12 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400824Overall Length - 24 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400836Overall Length - 36 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400848Overall Length - 48 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400860Overall Length - 60 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400872Overall Length - 72 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400884Overall Length - 84 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH400896Overall Length - 96 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401212Overall Length - 12 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401224Overall Length - 24 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401236Overall Length - 36 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401248Overall Length - 48 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401260Overall Length - 60 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401272Overall Length - 72 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401284Overall Length - 84 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH401296Overall Length - 96 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402412Overall Length - 12 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402424Overall Length - 24 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402436Overall Length - 36 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402448Overall Length - 48 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402460Overall Length - 60 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402472Overall Length - 72 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402484Overall Length - 84 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH402496Overall Length - 96 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403212Overall Length - 12 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403224Overall Length - 24 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403236Overall Length - 36 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403248Overall Length - 48 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403260Overall Length - 60 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403272Overall Length - 72 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403284Overall Length - 84 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - AH403296Overall Length - 96 in.Backing Material - AluminumBacking Size - #4;Finish - Clear AnodizedPart Number - STH400012Overall Length - 12 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400024Overall Length - 24 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400036Overall Length - 36 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400048Overall Length - 48 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400060Overall Length - 60 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400072Overall Length - 72 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400084Overall Length - 84 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedPart Number - STH400096Overall Length - 96 in.Backing Material - Stainless SteelBacking Size - #4;Finish - Clear AnodizedNote - Clear Anodized Finish in StockMounting holes and slots
Additional Information
Metal Back Strip Attachment to Core, Shaft or TubeAfter the straight metal back strip brush is formed, the strip is attached to the core, shaft or tube and wound under tension to make the coil cylinder brush. We are able to wind the strip right or left handed at the desired pitch to determine the brush density. Strips can be wound in either an open wound or close wound pitch.Stapled Set Tufted Cylinder and Circular BrushesStapled brushes consist of a series of individual tufts of fill material inserted into a bored hole in a solid block of wood or plastic. The tufts of fill material are secured to the block by a wire staple. Stapled set brushes are made with a variety of hole or tuft patterns to obtain the desired brush density and brushing effect. Hole patterns can be made with virtually any brush pattern.As with coil wound cylinder brushes, stapled set brushes can be made with similar core constructions. The plastic or wood core can be press fit to a shaft, made with collars to accept customer’s shaft, made with stub ends or ends can be machined and inserted into ends of core. Steel or aluminum tubing can be press fit into the inside diameter of the tube for mounting collars and added support. Bearings can be press fit into circular brushes.Core material is generally made of a hard wood or plastic. Most common types of plastics used are PVC, Acetal, high-density polyethylene, UHMW, ABS or polypropylene.
Assembled Coils
A finished coil can be assembled to a core, shaft, tube, or free coiled for mounting to the customers shaft in the field. Assembled coils can be tack welded or attached with an alligator clip to the core, shaft or tube. A larger winding pitch provides a less dense brush and conforms better to the surface being brushed. The photos above illustrate a loose or free coil and an assembled coil brush construction.
Configurator Coiled
Metal back strip brushes are manufactured into free or loose coils by winding them onto a mandrel or free coiling them. They can be produced as internal or external coils depending on the application and can be made with a close wound, tight coil making an extremely dense brush face or an open wound, loose coil with a lead producing less density in the brush face. Coils are manufactured to replace an existing coil on installed equipment or mounted onto a shaft or tube as a cylinder or rotary brush. Applications include conveyor cleaning, glass washing, vegetable and fruit washing, sheet metal polishing, cleaning trammel screens and used as an auger or screw to move product in a given direction.
Configurator Cylinder Or Rotary
A metal back strip brush is attached and wound directly to a core, shaft or tube. The coil is wound under tension onto a core, shaft or tube for secure mounting, or free coiled and then assembled to the core. A coil can be close or open wound depending on the desired brush density. Dynamic balancing is provided, if required, to assure complete surface contact regardless of the brush size and speed of the brush. Brushes are generally used in conveyor cleaning, glass washing, vegetable and fruit washing, sheet metal polishing, cleaning trammel screens and used as an auger or screw to move product in a given direction.
Configurator External Ring
External rings are metal back strip brushes wound with the filament to the outside. They are used as individual rings or mounted together to make a wide brush face. They are used in various cleaning and polishing applications.
Configurator Formed Cup
A metal back strip brush is formed into a 360 degree circle or segments of a full circle. The backing sides can be formed vertical or at various angles. Generally used for vacuum hose seals, router enclosures for dust and particle collection on drill presses.
Configurator Formed Strip
The metal back strip brush can be formed into irregular shapes. With a range of configurations, strip brushes can be formed into ovals, squares, rectangles, “L” and “V” shapes and compound curves. Formed to meet many shapes and applications.
Configurator Internal Ring
An internal ring is manufactured by forming a metal back strip brush with the filament material to the inside. The ring can be sprung open to place over a shaft or split in halves or segments to be mounted over a shaft. Ideally used for cleaning the outside surfaces of plastic or metal tubing and rod or used for drum and shaft seals. In high temperature applications, wire filament is recommended.
Configurator Shapes And Construction

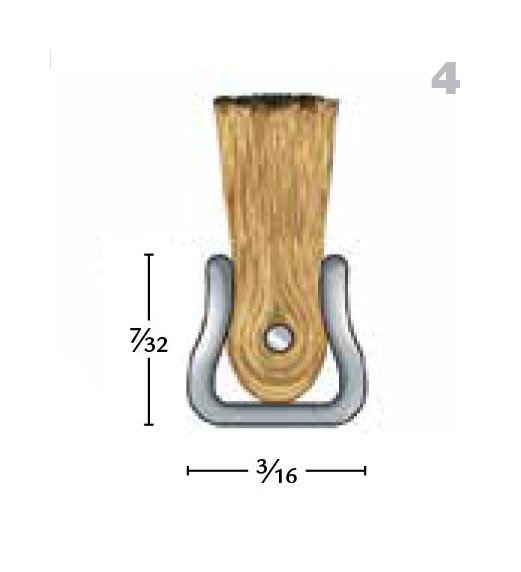

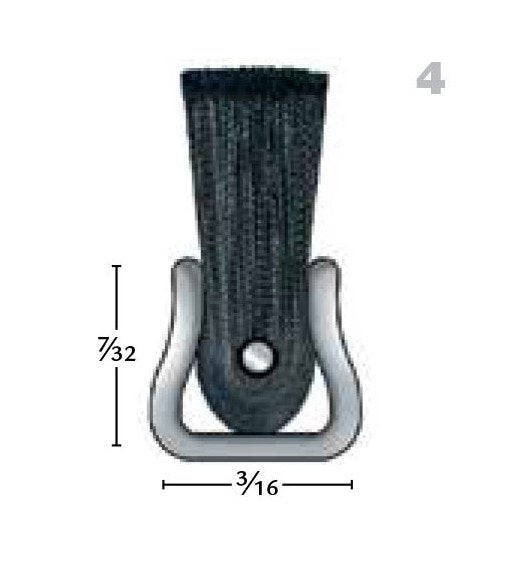

Prior to coiling the brush, a metal back strip brush is made first. Strip brushes consist of densely compressed synthetic, natural bristles or wire filaments laid down over a continuous metal channel formed into a "U" shape. A binding wire is inserted over the filament materials and forced down into the partially formed metal backing. The binding wire causes the fill material to form vertically as the metal backing forms and closes over the binding wire and filament.
Configurator Straight Strip
The most economical and common manufacturing shape for metal back strip brushes. Brushes are used individually or mounted parallel on a flat surface for a wider brush face. Applications include window seals, door and dock leveler seals, air flow seals, cable management, engine seals, conveyor cleaning, splash curtains, machine guards, static control, transportation vehicle seals and cleaning glass
Formed Dimensions Base Standard Formed Dimensions
0.194 in
Formed Dimensions Base Standard Formed Dimensions Tolerance
0.010 in
Formed Dimensions Leg Standard Formed Dimensions
0.205 in
Formed Dimensions Leg Standard Formed Dimensions Tolerance
0.015 in
Holder Options

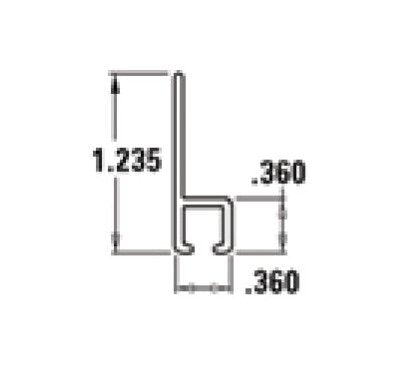

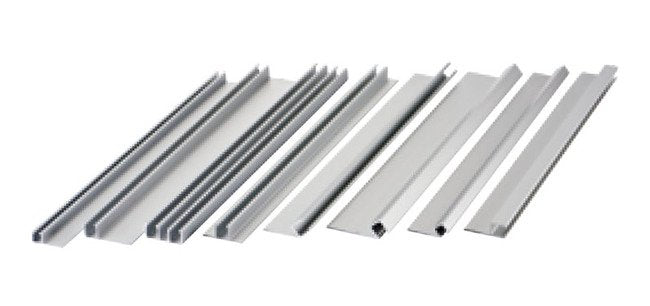

We offer strip brush holders for our metal back strip brushes in extruded aluminum for #2; 1/2, #3;, #4;, #7; and #10; backing sizes, and in formed stainless steel in #4; and #7; backing sizes. A flexible PVC holder is also available for #2; 1/2 backing size. The holders are produced with a variety of profile shapes for straight and angled mounting. The different profile shapes ensure the brush is mounted at an optimal position for maximum surface contact and effectiveness.We stock aluminum holders with clear anodized finishes. The anodized finish provides the aluminum with a naturally protective coating, strengthening the durability and extending the life of the brush holder.For our stapled set line, the all-in-one designs conveniently include holders, which are available in two styles: Clip Style and h-Profile. The integrated Clip Style backing makes placing and moving the brush fast and easy. The integrated h-Profile allows for quick and easy mounting without needing to purchase a separate holder. We stock flexible PVC holders in Clip Style and h-Profile to match with our new Fuze Flex™ Strip Brushes.
Level Or Crimped Level Or Crimped Synthetic Fill Size Range
0.003 to 0.030 in
Level Or Crimped Level Or Crimped Wire Fill Size Range
0.003 to 0.010 in
Note
Other trim lengths, overall lengths, fill material and backing sizes are available upon request.
Overall Trim Maximum Overall Trim
8.00 in
Overall Trim Maximum Overall Trim Tolerance
0.032 in
Overall Trim Minimum Overall Trim
0.375 in
Overall Trim Minimum Overall Trim Tolerance
0.032 in
Specifications Backing Material
Stainless Steel
Specifications Backing Size
#4
Specifications Filament Diameter
0.010 in
Specifications Fill Material
Crimped Black Nylon
Specifications Overall Length
72 in
Specifications Overall Trim
1 in
Staple Construction
Stapling provides consistent product quality and reliability. The versatility and economy of stapling makes stapled set cylinder and circular brushes ideal for a wide variety of applications and industries. The staple, as shown in the illustrations at right, is a primary part of the brush. A staple is made either of steel, stainless steel or brass. The type of staple used is predicated by the environment and conditions the brush will be performing under.
Thickness Thickness Galvanized
0.030 in
Thickness Thickness Stainless Steelstainless Steel
0.025 in
