Meet your deburring and finishing needs with the Tanis® 3/4 Inch Silicon Carbide Abrasive Nylon Twisted Brush. Designed for precision and durability, this brush features 320 grit size, 0.022 inch filament diameter, and twisted construction for enhanced strength and density. With a recommended operating speed of 100-500 RPM and safety precautions in place, this brush ensures efficient and safe performance in CNC machine tools, drill presses, and manual machine tools.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
3/4 in
Specifications Brush Length
2-1/2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.022 in
Specifications Material
Silicon Carbide
Specifications Overall Length
5-1/2 in
Specifications Size
320 grit
Specifications Stem Diameter
1/4 in

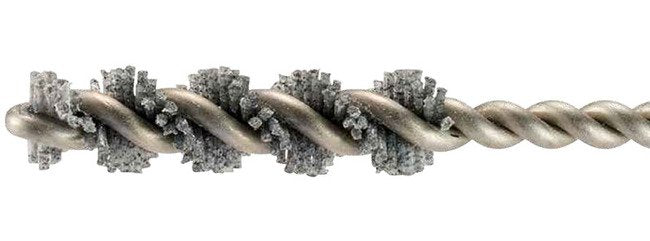

Twisted Brush Stem Construction
Filament is twisted between four stem wires, with two stem wires on each side for additional strength and higher density fill.
