Tanis® 4 Inch Metal Hub Brush with Silicon Carbide Filament, 120 Grit
Tanis® 4 Inch Metal Hub Brush with Silicon Carbide Filament, 120 Grit
SKU:ABR-b844e4
Achieve precision deburring with Tanis® 4 Inch Metal Hub Brush. Ideal for ferrous metal finishing, featuring 120 grit silicon carbide filament.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 4 Inch Metal Hub Brush with Silicon Carbide Filament, 120 Grit
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 4 Inch Metal Hub Brush with Silicon Carbide Filament, 120 Grit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

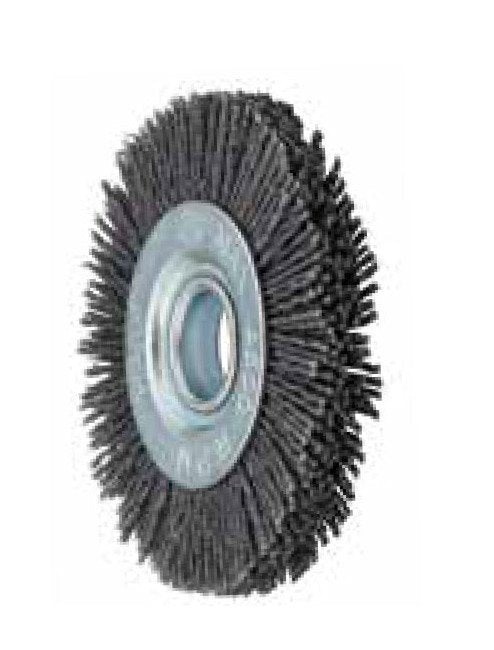

The Tanis® 4 Inch Metal Hub Brush features a durable galvanized steel hub and silicon carbide filament, offering exceptional abrasive performance for finishing ferrous metals. With a 120 grit size and 0.040 inch filament diameter, this brush ensures consistent deburring and honing in various industrial applications. Suitable for high-temperature use, manual operations, and CNC machines with the optional Wheel Brush Adapter Plates for seamless integration. Enhance your manufacturing process with Tanis® metal hub brushes, delivering high quality at a cost-effective value.
Product Specifications
Accessories
Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35900Face Width - StandardBrush Inside Diameter (ID) - 3/4 in.Pilot - 3/4 in.
Applications
Deburring Keyways, Slots and Machine Grooves in PartsDeburring Gear SplinesHoning and Finishing of Cylindrical BoresEdge RadiusingDeburring Seal Grooves in Turbine Engine Cases and Small Aerospace Parts
Benefits
Consistency in Manufacturing ProcessHigh Quality and Low CostMetal Hub Allows for High Temperature UseManual Operations
Industries
MachiningCastingMetal FinishingMachining CentersManual Operations
Note
Drive arbors are available for collet mounting applications.
Specifications Arbor Hole Size
1/2 to 5/8 in
Specifications Brush Diameter
4 in
Specifications Face Width
0.500 in
Specifications Filament
Silicon Carbide
Specifications Filament Diameter
0.040 in
Specifications Hub Material
Galvanized Steel
Specifications Maximum Speed
4500 rpm
Specifications Size
120 grit
Specifications Trim Length
0.850 in
