The Tanis® 5/16 inch Brass Twisted Power Side Tuft Cleaning Brush is designed for precision cleaning and polishing of threads, tubes, and cylinders. Featuring a solid concentration of brass bristles with a 0.003 inch filament diameter, this brush ensures optimal stiffness and minimal flexing during operation. Ideal for use in power tools, this brush delivers high performance and durability. With a stem diameter of 0.099 inch and an overall length of 2-1/8 inches, it is compatible with Tanis® Side Tuft Brush Holders for enhanced cleaning action at higher RPM.
Product Specifications
Accessories

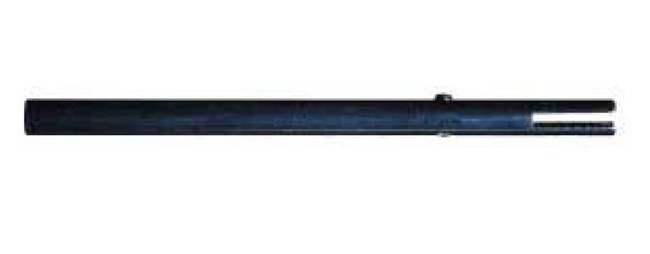

Side Tuft Brush HoldersPart Number - 01040Description - Slightly reduces bristle trim length for more aggressive brush action while allowing the brush to be driven at a higher RPM.Stem Diameter - 3/32 in.Overall Length - 3-3/8 in.Shank Diameter - 1/4 in. for 0.099 stem diameter
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
5/16 in
Specifications Brush Length
9/16 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.003 in
Specifications Fill Material
Brass
Specifications Overall Length
2-1/8 in
Specifications Stem Diameter
0.099 in
