Tanis® 8 Inch 180 Grit Silicon Carbide Abrasive Nylon Disc Brush

Name: Tanis® 8 Inch 180 Grit Silicon Carbide Abrasive Nylon Disc Brush
Brand: Tanis, Inc.
SKU: ABR-f32fe8
Price: 39.99 USD
Availability: OutOfStock

SKU:ABR-f32fe8

Achieve precise deburring and surface finishing with Tanis® 8” 180 Grit Abrasive Nylon Disc Brush.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

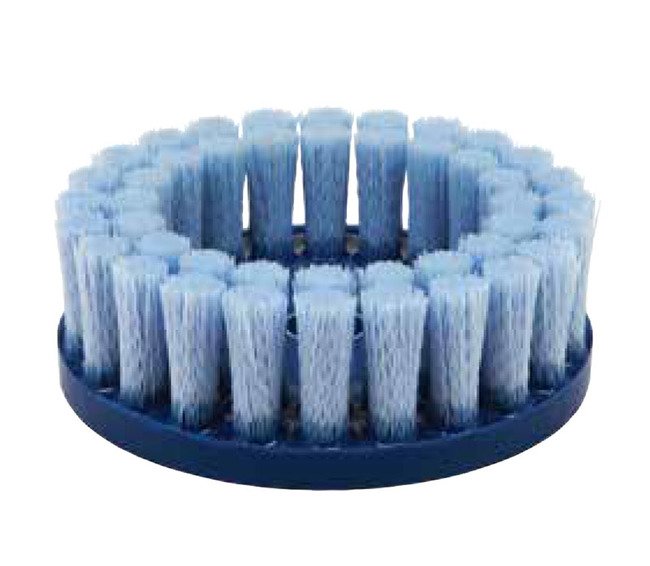

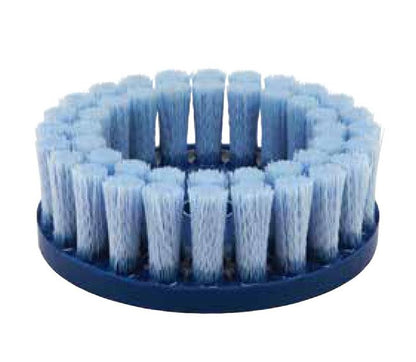

The Tanis® 8 Inch 180 Grit Silicon Carbide Abrasive Nylon Disc Brush offers superior performance with its teardrop-shaped filament configuration, providing heavy-duty abrasive action while allowing ample air or coolant flow. Ideal for light-to-medium abrasive applications, this custom-engineered disc brush boasts a variety of abrasive nylon filament choices. Designed for precision and durability, it delivers exceptional deburring, blending of grinding marks, and surface finish improvement across various materials.

Product Specifications

Accessories

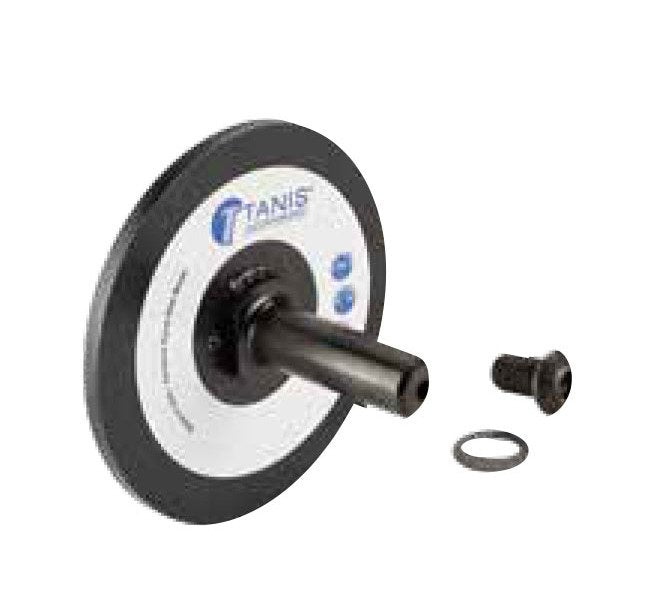

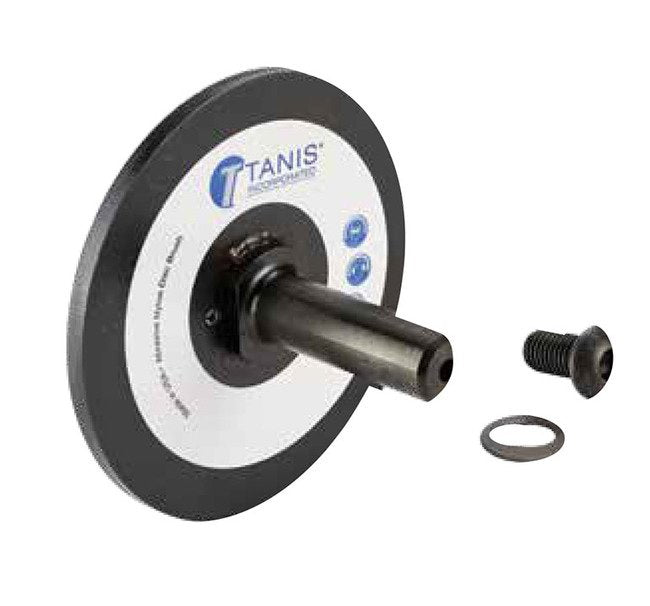

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35065For Brush Diameter - 8 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35092For Brush Diameter - 8 in.Ring Inside Diameter (ID) - 7 in.Ring Outside Diameter (OD) - 7-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.

Additional Information

Abrasive nylon disc brushes work best at speeds allowing fairly deep penetration of the work piece into the brush filaments. Faster speeds do not typically work as well as slower speeds, since the maximum RPM listed on the brush is not the optimum working speed. A good rule of thumb is to stay below 2,500 SFPM in dry applications and 3,500 SFPM with coolant.Rotational DirectionOn the initial pass of the brush, rotation should be in the opposite direction of the cutting tool that created the burr. Brush should overlap edge of working piece by 1" minimum.Brush PathThe ideal brush path is in the opposite direction of travel from the cutting tool that created the burr. The brush path should also be longer than the cutting tool path, to a point where the trailing edge of the brush is effective on the end of the part. Lastly, to maximize the amount of filament that is striking the part, the center line of the brush should be offset from the center of the part.Penetration (Point of Contact)The abrasive action occurs when the sides of the brush filament slide across the part surface or edge of the part. When the correct balance between speed (RPM), penetration, dwell time and abrasive grit size are achieved, then optimum life and cut can be obtained. Recommended penetration rates for abrasive nylon disc brushes are from 0.075" to 0.100". This will allow long brush life with aggressive abrasive action.

Applications

Cast Part DeburringAirframe ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish

Feed Rate Feed Rate Aluminumnon Ferrous

35 to 50 in/min

Feed Rate Feed Rate Mild Steelcast Iron

25 to 30 in/min

Feed Rate Feed Rate Stainless Steelalloy Steels

12 to 18 in/min

Note

Additional diameters and grits available upon request.

Pattern

Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.

Specifications Arbor Hole Size

7/8 in

Specifications Brush Diameter

8 in

Specifications Dry Application Starting Speed

800 to 1200 rpm

Specifications Filament

Silicon Carbide

Specifications Filament Diameter

0.035 in

Specifications Maximum Speed

2000 rpm

Specifications Peripheral Angular Speed

20.9 rpm

Specifications Recommended Motor Size Based On A 1 Inch In Brush

3/4 hp

Specifications Size

180 grit

Specifications Trim Length

1-1/2 in

Troubleshooting Abrasive Nylon Brushes

Brush too aggressiveReduce filament diameter and/or grit sizeReduce surface speed by reducing RPMIncrease trim length and decrease fill densityIncrease feed rateUse a smaller diameter brushBrush not aggressive enoughIncrease filament density and/or grit sizeIncrease surface speed by increasing RPMDecrease trim lengthReduce feed rateUse a larger diameter brushBrush not conforming enough to partIncrease trim lengthReduce filament densityUse a smaller diameter brushReduce surface speed by reducing RPMReduce feed rateFinal finish too roughIncrease surface speed by increasing RPMUse a larger diameter brushUse a finer abrasive filamentUse a coolant or cutting oilUse a buffing compoundFinal finish too smoothReduce surface speed by reducing RPMUse a smaller diameter brushIncrease filament density and/or grit sizeFilament smearing/meltingReduce surface speed by reducing RPMDecrease brush diameterUse a coolant or lubricantMore action needed on edges parallel to brush axisReduce surface speed by reducing RPMReduce feed rateKeep longer brush contact on problem areaMore action needed on edges perpendicular to brush axisReduce surface speed by reducing RPMIncrease feed rateOscillate brush on problem areaBrush action not uniform enoughIncrease trim lengthReduce filament densityUse automated equipment for brush motionShort brush lifeIncrease filament densityReduce pressure/depth of interference
