Tanis® CeramiX® 10-Inch Shell Mill Disc Brush, 80 Grit
Tanis® CeramiX® 10-Inch Shell Mill Disc Brush, 80 Grit
SKU:ABR-f1d540
Achieve precise deburring and finishing with Tanis® CeramiX® 10-Inch Shell Mill Disc Brush - 80 Grit. Ideal for CNC machining centers.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Tanis® CeramiX® 10-Inch Shell Mill Disc Brush, 80 Grit
$59.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 10-Inch Shell Mill Disc Brush, 80 Grit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

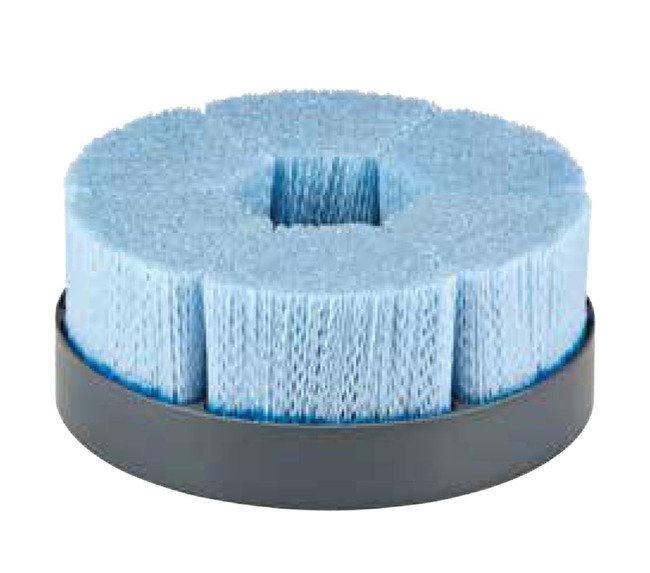

The Tanis® CeramiX® 10-Inch Shell Mill Disc Brush with 80 grit offers precision deburring and finishing on flat surfaces. Built with CeramiX® filament for superior abrasive action, this brush enhances metal finish on milled and machined surfaces while blending rough edges on machined parts. The brush's keyway design allows direct mounting to standard shell mill holders for efficient use in CNC machining centers, ensuring consistent, high-quality results for industrial applications.
Product Specifications
Accessories

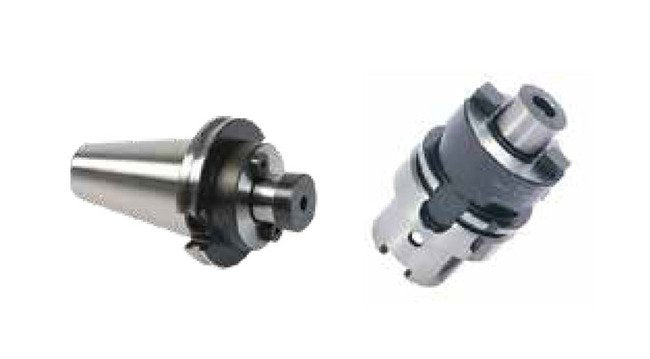

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35070For Brush Diameter - 10 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35094For Brush Diameter - 10 in.Ring Inside Diameter (ID) - 9 in.Ring Outside Diameter (OD) - 9-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
10 in
Specifications Filament Diameter
0.045 x 0.090 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
