Tanis® CeramiX® 10 Inch Shell Mill Holder Disc Brush, 120 Grit
Tanis® CeramiX® 10 Inch Shell Mill Holder Disc Brush, 120 Grit
SKU:ABR-3ef661
Achieve superior dimensional precision with Tanis® CeramiX® 10 Inch Disc Brush - 120 Grit for deburring and surface finishing on flat surfaces.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Tanis® CeramiX® 10 Inch Shell Mill Holder Disc Brush, 120 Grit
$79.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 10 Inch Shell Mill Holder Disc Brush, 120 Grit
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

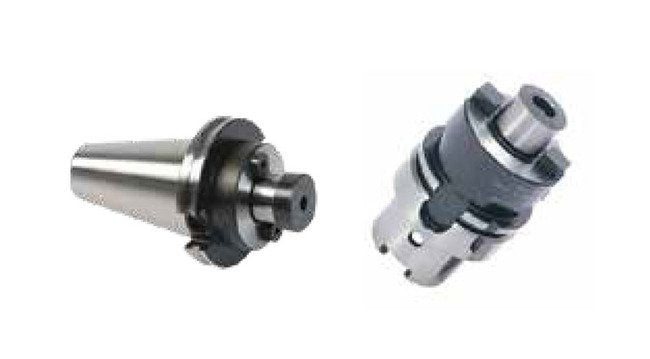

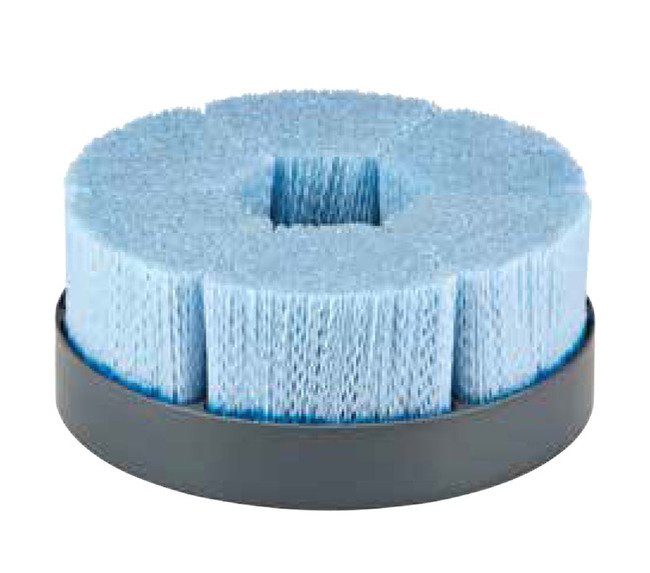

The Tanis® CeramiX® 10 Inch Shell Mill Holder Disc Brush with 120 grit is designed to deliver superior dimensional precision and exceptional abrasive action for deburring applications on flat surfaces. The CeramiX® filament ensures a high-quality metal finish on milled and machined surfaces and effectively blends rough edges on machined parts. This shell mill disc brush features a built-in keyway for direct mounting to standard shell mill holders, making it ideal for use in CNC machining centers.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35070For Brush Diameter - 10 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35094For Brush Diameter - 10 in.Ring Inside Diameter (ID) - 9 in.Ring Outside Diameter (OD) - 9-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
10 in
Specifications Filament Diameter
0.028 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
