Tanis® CeramiX® 3" Disc Brush, 120 Grit Shell Mill Holder Disc
Tanis® CeramiX® 3" Disc Brush, 120 Grit Shell Mill Holder Disc
SKU:ABR-04e7a0
Achieve precise deburring and finishing with Tanis® CeramiX® 3" Disc Brush, designed for flat surfaces and metal finishing tasks.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Tanis® CeramiX® 3" Disc Brush, 120 Grit Shell Mill Holder Disc
$39.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 3" Disc Brush, 120 Grit Shell Mill Holder Disc
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

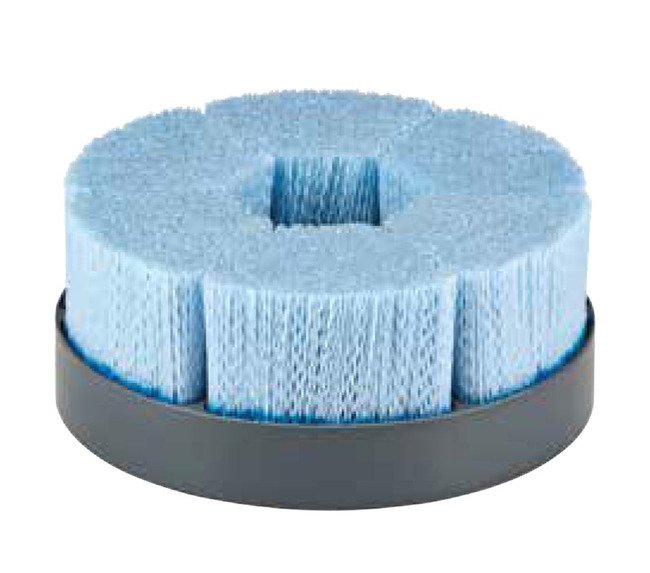

The Tanis® CeramiX® 3" Disc Brush with 120 Grit and 0.040" Filament Diameter is engineered for superior dimensional precision and abrasive action. Ideal for deburring and finishing on flat surfaces, this brush enhances metal finish on milled and machined surfaces while efficiently blending rough edges. Designed with a built-in keyway, it mounts directly to standard shell mill holders for seamless use in CNC machining centers.
Product Specifications
Accessories

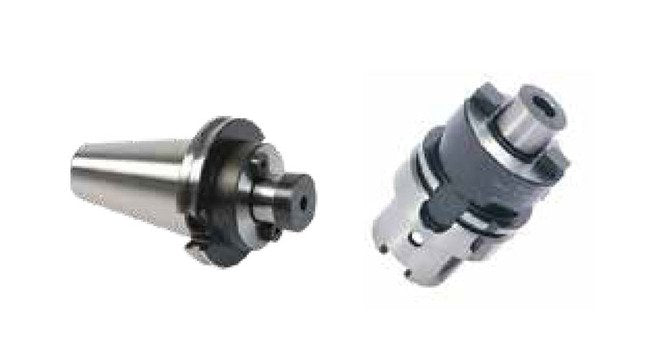

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 3 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35084For Brush Diameter - 3 in.Ring Inside Diameter (ID) - 2-1/2 in.Ring Outside Diameter (OD) - 2-7/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
3/4 in
Specifications Brush Diameter
3 in
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
