Tanis® CeramiX® 3-inch 120 Grit Mini Disc Brush

Name: Tanis® CeramiX® 3-inch 120 Grit Mini Disc Brush
Brand: Tanis, Inc.
SKU: ABR-63947a
Price: 29.99 USD
Availability: OutOfStock

SKU:ABR-63947a

Achieve superior deburring and surface finish with the Tanis® CeramiX® Mini Disc Brush.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Tanis® CeramiX® 3-inch Mini Disc Brush is designed for precision deburring and surface finishing tasks. With a composite hub and high filament density, these brushes feature the innovative 3M™ Company 321 mineral grain, delivering cutting action 3 to 5 times greater than traditional filaments. CeramiX® produces sharper abrasion for superior results, reducing cycle times, boosting productivity, and maximizing abrasive media usage.

Product Specifications

Accessories

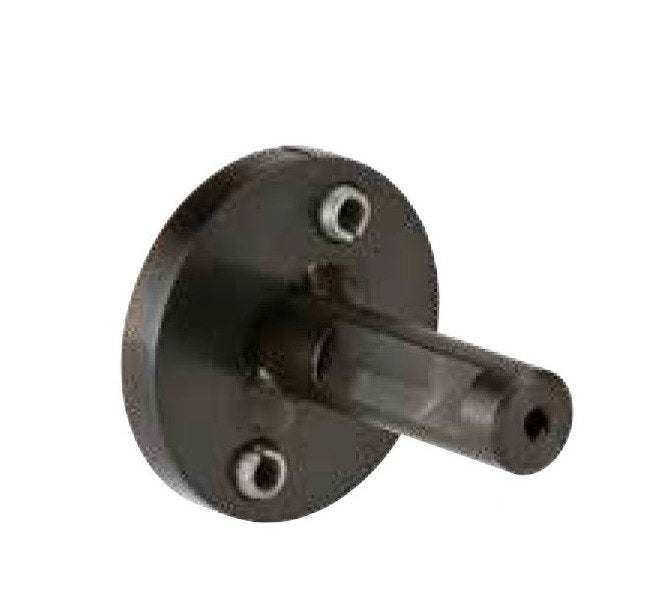

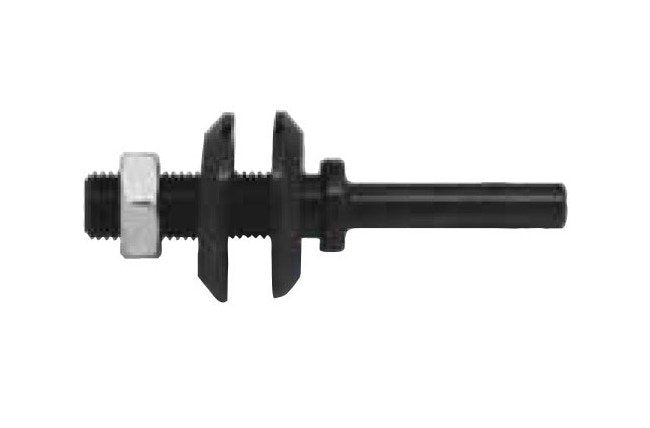

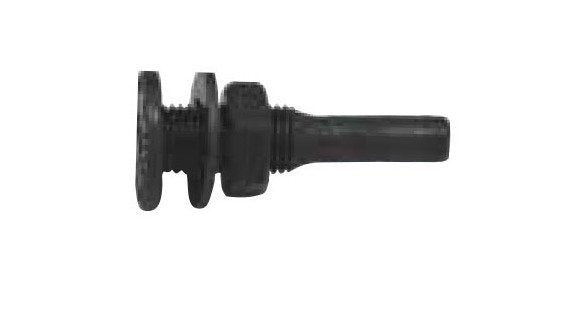

Part Number - 35048Item Name - Mini Disc Brush Drive ArborDescription - Used to securely mount mini disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 1/2 diameter for use in any live tool holder. Set screw included in each brush to secure brush to drive arbor.Brush Diameter - 2, 3 in.Shaft Diameter - 1/2 in.Maximum Speed - 4500 rpm.Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4 diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 3 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35084For Brush Diameter - 3 in.Ring Inside Diameter (ID) - 2-1/2 in.Ring Outside Diameter (OD) - 2-7/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.Air Motor ShanksDescription - For air motors and flexible shafts. Accepts single or multiple brushes.Part Number - 10031Shank Diameter - 1/4 in.Arbor Hole Size - 3/8 in.For Arbor Width Up To - 3/8 in.Overall Length - 1-5/8 in.Drill Press ShanksDescription - For use in portable tools and drill presses with 1/4 chuck adaptability.Part Number - 10026Shank Diameter - 1/4 in.Arbor Hole Size - 3/8 in.For Arbor Width Up To - 7/8 in.Overall Length - 2-1/2 in.

Note

Set screw included to securely mount drive arbor.Additional diameters and grits available upon request.

Specifications Arbor Hole Size

3/8 in

Specifications Brush Diameter

3 in

Specifications Filament Diameter

0.028 in

Specifications Material

CeramiX®

Specifications Maximum Speed

4500 rpm

Specifications Size

120 grit

Specifications Trim Length

1-1/4 in
