Tanis® CeramiX® 3" Shell Mill Holder Disc Brush (80 Grit)
Tanis® CeramiX® 3" Shell Mill Holder Disc Brush (80 Grit)
SKU:ABR-71e006
Enhance CNC precision with Tanis® CeramiX® 3" Shell Mill Disc Brush - perfect for deburring and finishing metal surfaces.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Tanis® CeramiX® 3" Shell Mill Holder Disc Brush (80 Grit)
$49.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 3" Shell Mill Holder Disc Brush (80 Grit)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

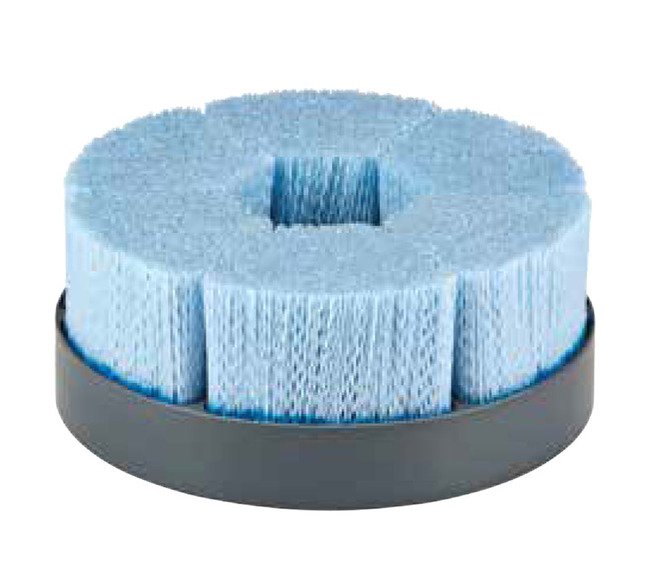

Upgrade your CNC machining precision with Tanis® CeramiX® 3" Shell Mill Holder Disc Brush. Featuring 80 grit CeramiX® filament, this brush ensures superior abrasive action for deburring, smoothing metal finishes, and blending rough edges on machined parts. With a built-in keyway for easy mounting on standard shell mill holders, achieve exceptional dimensional accuracy and surface quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 3 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35084For Brush Diameter - 3 in.Ring Inside Diameter (ID) - 2-1/2 in.Ring Outside Diameter (OD) - 2-7/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note

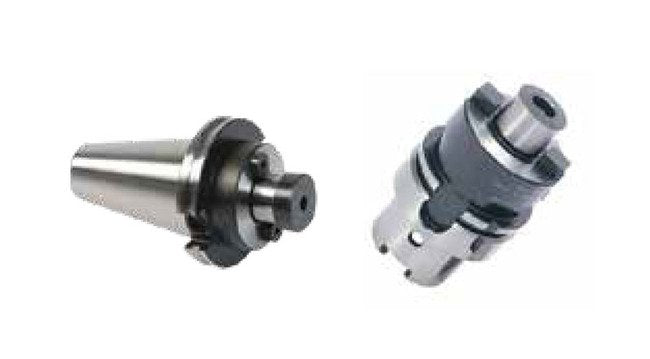

Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
3/4 in
Specifications Brush Diameter
3 in
Specifications Filament Diameter
0.055 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
