Tanis® CeramiX® 4in Shell Mill Holder Disc Brush, 80 Grit
Tanis® CeramiX® 4in Shell Mill Holder Disc Brush, 80 Grit
SKU:ABR-768153
Achieve precision deburring and metal finishing with Tanis® CeramiX® 4in Shell Mill Holder Disc Brush.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® CeramiX® 4in Shell Mill Holder Disc Brush, 80 Grit
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 4in Shell Mill Holder Disc Brush, 80 Grit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

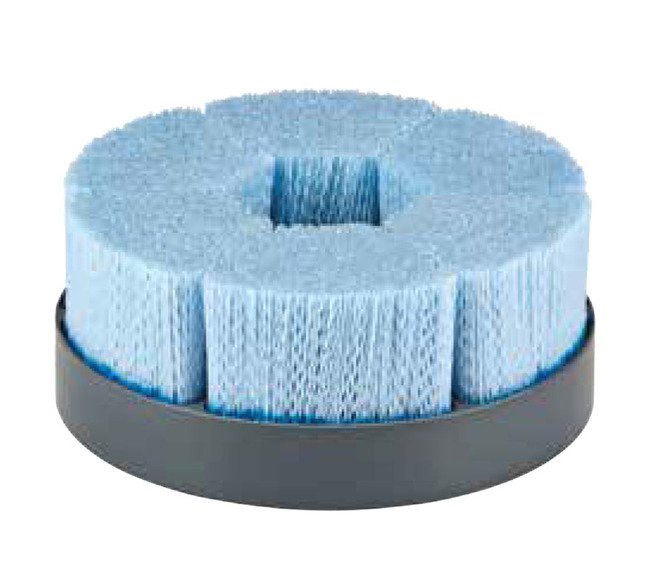

Experience superior dimensional precision with Tanis® CeramiX® 4-inch Shell Mill Holder Disc Brush featuring 80 grit CeramiX® filament for exceptional abrasive action. Designed for CNC machining centers, this brush effectively deburrs flat surfaces, enhances metal finishes, and blends rough edges on machined parts, ensuring high-quality results. The built-in keyway allows easy mounting to standard shell mill holders for efficient use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 4 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35086For Brush Diameter - 4 in.Ring Inside Diameter (ID) - 3-1/4 in.Ring Outside Diameter (OD) - 3-5/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note

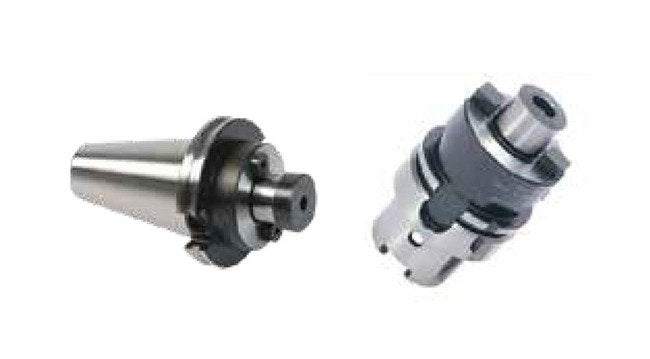

Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
4 in
Specifications Filament Diameter
0.045 x 0.090 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
