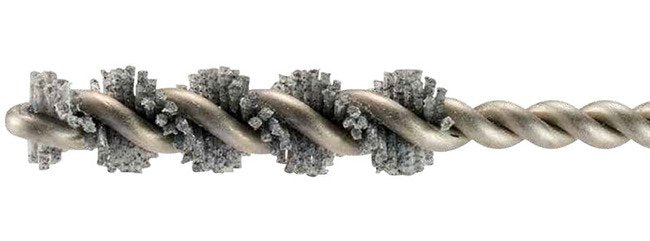

Tanis® CeramiX® 5/16 Inch 120 Grit Nylon Twisted Brush
Tanis® CeramiX® 5/16 Inch 120 Grit Nylon Twisted Brush
SKU:TWI-9e3348
Achieve precise deburring with Tanis® CeramiX® 5/16in 120 Grit Nylon Brush.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® CeramiX® 5/16 Inch 120 Grit Nylon Twisted Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 5/16 Inch 120 Grit Nylon Twisted Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tanis® CeramiX® Nylon Twisted Brush is expertly designed for precision deburring and finishing tasks, making it ideal for tubular component parts and drilled holes. With a durable 0.028in filament diameter and solid galvanized steel shank, this brush ensures ease of use in CNC machine tools and manual applications. Its single stem, single spiral construction with continuous end guarantees efficient performance and longevity.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Additional diameters and grits available upon request.Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
5/16 in
Specifications Brush Length
2 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.028 in
Specifications Material
CeramiX®
Specifications Overall Length
8 in
Specifications Shank Diameter
3/16 in
Specifications Size
120 grit
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
