Tanis® CeramiX® 6 Inch Shell Mill Holder Disc Brush
Tanis® CeramiX® 6 Inch Shell Mill Holder Disc Brush
SKU:ABR-8bee14
Achieve superior dimensional precision with Tanis® CeramiX® Disc Brush for deburring and finishing on flat surfaces.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Tanis® CeramiX® 6 Inch Shell Mill Holder Disc Brush
$34.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 6 Inch Shell Mill Holder Disc Brush
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

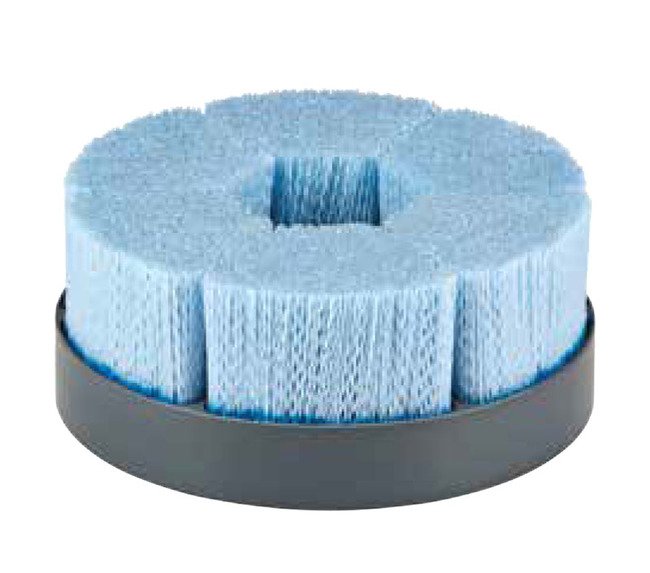

The Tanis® CeramiX® 6 Inch Shell Mill Holder Disc Brush is engineered to deliver unparalleled dimensional precision in deburring and finishing applications. Featuring a dense pattern with 120 grit and 0.028-inch filament diameter, this brush ensures exceptional abrasive action for enhancing metal finishes on flat and machined surfaces. Designed with a built-in keyway, it seamlessly mounts to standard shell mill holders, optimizing performance in CNC machining centers.
Product Specifications
Accessories

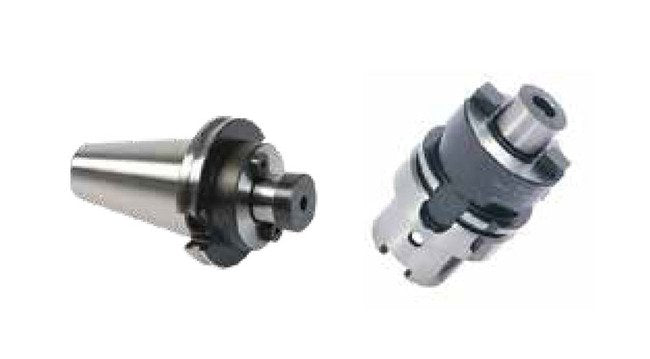

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.028 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
