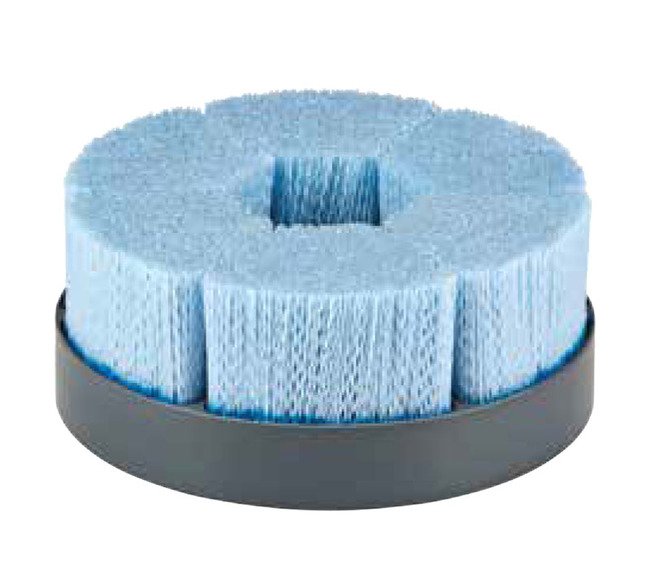

Tanis® CeramiX® 8" Shell Mill Disc Brush, 120 Grit
Tanis® CeramiX® 8" Shell Mill Disc Brush, 120 Grit
SKU:ABR-7c75e2
Achieve superior dimensional precision with Tanis® 8" Shell Mill Disc Brush, perfect for deburring and enhancing metal finish.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Tanis® CeramiX® 8" Shell Mill Disc Brush, 120 Grit
$59.99
Quantity: 1
Claim Your Seller Account
Tanis® CeramiX® 8" Shell Mill Disc Brush, 120 Grit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision and efficiency with Tanis® CeramiX® 8" Shell Mill Disc Brush. Featuring 120 grit CeramiX® filament for exceptional abrasive action, this brush excels in deburring and improving metal finish on milled surfaces. Ideal for CNC machining, the built-in keyway ensures secure mounting to standard shell mill holders.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35065For Brush Diameter - 8 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 4Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35092For Brush Diameter - 8 in.Ring Inside Diameter (ID) - 7 in.Ring Outside Diameter (OD) - 7-1/2 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Use the Tufted Brush on contoured areas that need light to moderate surface finish. The bristle spacing allows for filament movement ideal for flat and varied surfaces.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
8 in
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
2500 rpm
Specifications Size
120 grit
Specifications Trim Length
1-1/2 in
