Tanis® RB Series 10" x 12" Conveyor Cylinder Brush

Name: Tanis® RB Series 10" x 12" Conveyor Cylinder Brush
Brand: Tanis, Inc.
SKU: MAT-b36840
Price: 79.99 USD
Availability: OutOfStock

SKU:MAT-b36840

Premium Tanis® RB Series Conveyor Cylinder Brush - Ideal for effective conveyor cleaning and material transport.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

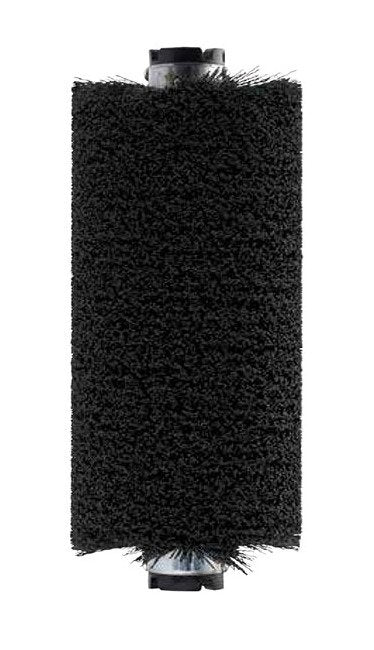

Tanis® RB Series 10" x 12" Conveyor Cylinder Brush is expertly coil-wound with durable polypropylene bristles mounted on a 16 gauge steel tube. Designed for efficient conveyor cleaning, debris removal, and material transport, this brush features Isoplast® collar ends for easy mounting on a 1" shaft. With precise core construction and versatile applications, this brush offers superior performance and longevity.

Product Specifications

Additional Information

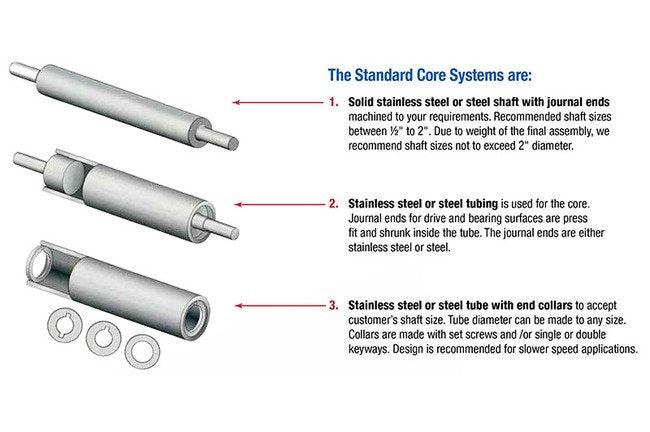

Brush Core ConstructionPrecise cylinder brush core constructions provide excellent brush concentricity. The brush core constructions are illustrated below. Core diameters have no limitations. A larger brush will require a stronger core designed for the application. Shafts can be machined to customer specifications; however weight is a factor in the final assembly. Since most coils are welded directly to a tube or shaft, end rings can be machined to make a better cosmetic appearance or leave the weld and channel exposed for a more economical finish.Coil wound cylinder brushes can be refurbished using the same shaft or tube. Tanis® will remove the worn brush off the existing assembly, then refill the shaft or tube with a new coil wound brush. We can repair journal or stub ends on shafts to provide a new surface for drives and bearings. Dynamic balancing can be provided for a fixed rotation speed or other working conditions in your application.The Standard Core Systems are:Solid stainless steel or steel shaft with journal ends machined to your requirements. Recommended shaft sizes between 1/2" to 2". Due to weight of the final assembly, recommend shaft sizes not to exceed 2" diameter.Stainless steel or steel tubing is used for the core. Journal ends for drive and bearing surfaces are press fit and shrunk inside the tube. The journal ends are either stainless steel or steel.Stainless steel or steel tube with end collars to accept customer's shaft size. Tube diameter can be made to any size. Collars are made with set screws and /or single or double keyways. Design is recommended for slower speed applications.

Specifications Applications

Conveyor

Specifications Backing Size

Specifications Bristle Diameter

0.030 in

Specifications Brush Design

Cylinder

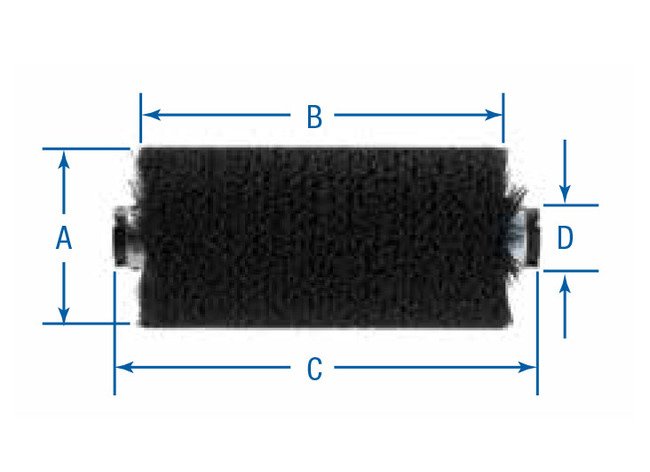

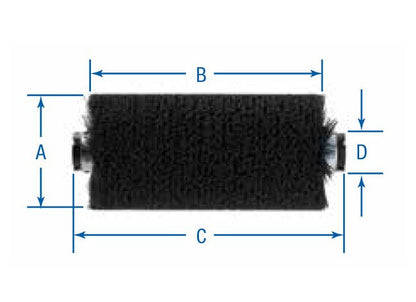

Specifications Brush Diameter A

10 in

Specifications Brush Face B

12 in

Specifications Collar Ends

Isoplast®

Specifications Material

Polypropylene (PP)

Specifications Overall Length C

14 in

Specifications Thickness

16 gauge

Specifications Tube Diameter D

2 in
