Tanis 3 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
Tanis 3 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
SKU:ABR-1b8852
Achieve precision finishing with the Tanis 3 Inch Metal Hub Wheel Brush - perfect for deburring ferrous metals efficiently.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Tanis 3 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
$24.99
Quantity: 1
Claim Your Seller Account
Tanis 3 Inch Metal Hub Wheel Brush with Silicon Carbide Filament
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

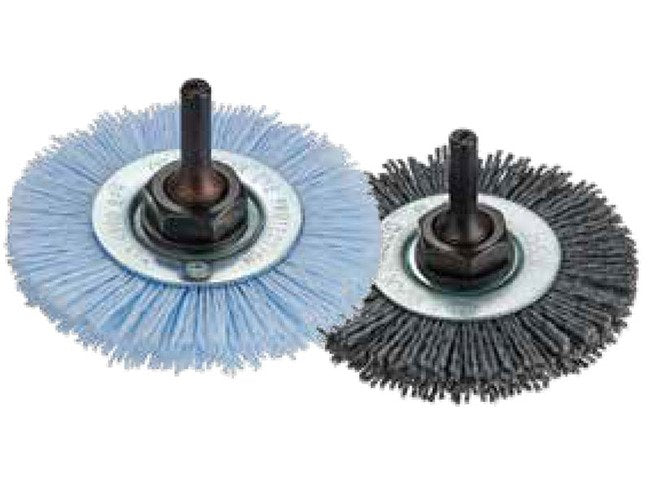

The Tanis 3 Inch Metal Hub Wheel Brush is designed for precision finishing in industrial applications. With a 120 grit silicon carbide filament, this brush ensures efficient deburring of ferrous metals. Featuring a galvanized steel hub for high-temperature use and a trim length of 5/8 in, this brush offers consistency in the manufacturing process. Ideal for deburring keyways, gear splines, and honing cylindrical bores, this brush guarantees high quality at a low cost, making it suitable for manual and automated machining operations.
Product Specifications
Accessories

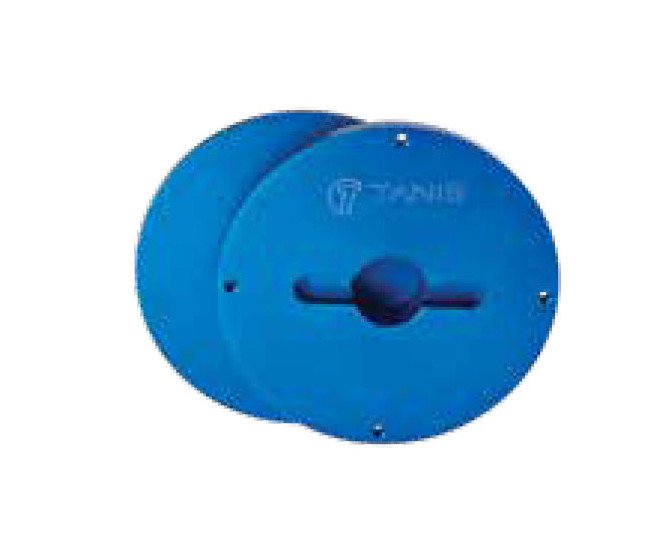

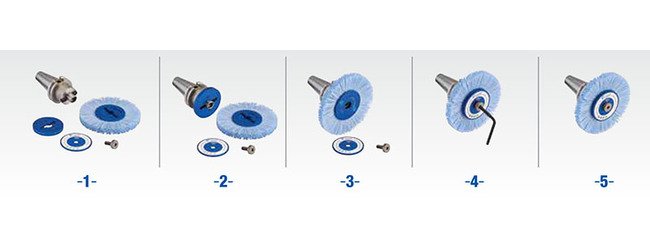

Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35900Face Width - StandardBrush Inside Diameter (ID) - 3/4 in.Pilot - 3/4 in.
Applications
Deburring Keyways, Slots and Machine Grooves in PartsDeburring Gear SplinesHoning and Finishing of Cylindrical BoresEdge RadiusingDeburring Seal Grooves in Turbine Engine Cases and Small Aerospace Parts
Benefits
Consistency in Manufacturing ProcessHigh Quality and Low CostMetal Hub Allows for High Temperature UseManual Operations
Industries
MachiningCastingMetal FinishingMachining CentersManual Operations
Note

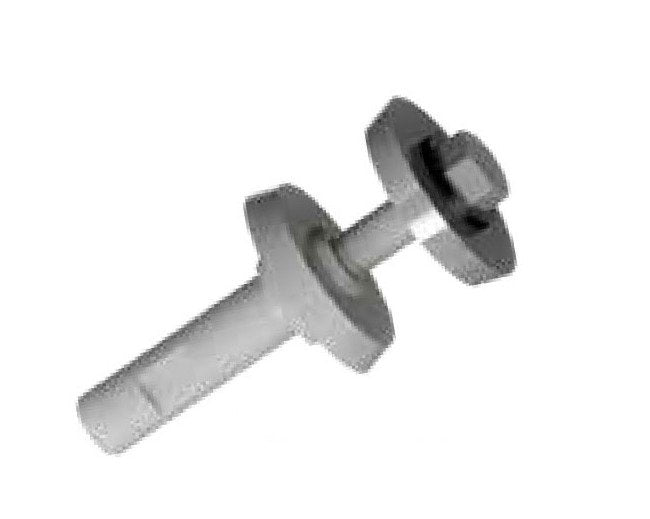

Drive arbors are available for collet mounting applications.
Specifications Arbor Hole Size
1/2 to 5/8 in
Specifications Brush Diameter
3 in
Specifications Face Width
0.375 in
Specifications Filament
Silicon Carbide
Specifications Filament Diameter
0.040 in
Specifications Hub Material
Galvanized Steel
Specifications Maximum Speed
4500 rpm
Specifications Size
120 grit
Specifications Trim Length
5/8 in
