Tanis 46 Grit 0.060 in Filament Diameter Fine Blanking Disc Brush
Tanis 46 Grit 0.060 in Filament Diameter Fine Blanking Disc Brush
SKU:ABR-ca221f
Achieve superior deburring and polishing with Tanis 46 Grit Fine Blanking Disc Brush.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Tanis 46 Grit 0.060 in Filament Diameter Fine Blanking Disc Brush
$39.99
Quantity: 1
Claim Your Seller Account
Tanis 46 Grit 0.060 in Filament Diameter Fine Blanking Disc Brush
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

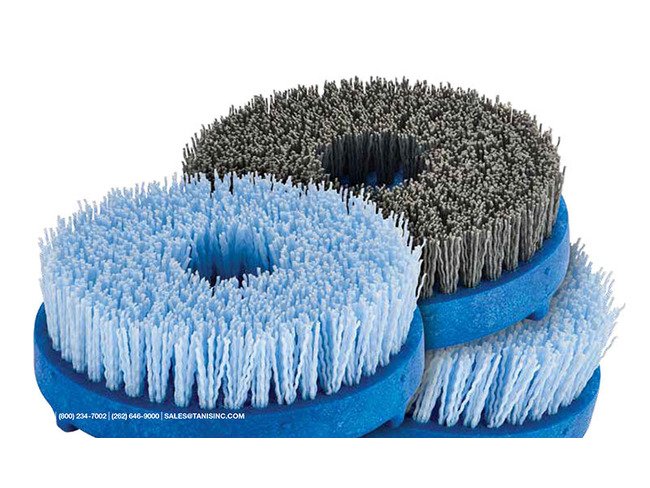

The Tanis 46 Grit Fine Blanking Disc Brush is specially designed for stationary finishing machines, compatible with European machines like Volbhag, Niederberger, and Peter Wolters. Ideal for deburring, edge radiusing fine-blanked parts, and polishing machined surfaces. With a filament diameter of 0.060 in and a trim length of 25 mm, this brush ensures precise and efficient performance.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
25 mm
Specifications Block Thickness
1 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.060 in
Specifications Material
Silicon Carbide
Specifications Maximum Speed
3000 rpm
Specifications Peripheral Angular Speed
23.6 rpm
Specifications Size
46 grit
Specifications Trim Length
25 mm
