Tanis Aluminum Oxide Abrasive Nylon Twisted Brush
Tanis Aluminum Oxide Abrasive Nylon Twisted Brush
SKU:TWI-16a153
Precise aluminum oxide twisted brush for ultra-fine hole deburring without surface alteration. Single stem construction. Ideal for institutions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis Aluminum Oxide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis Aluminum Oxide Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

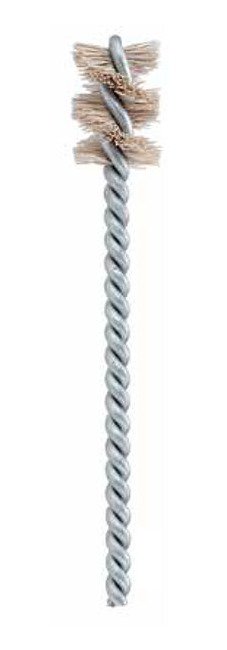

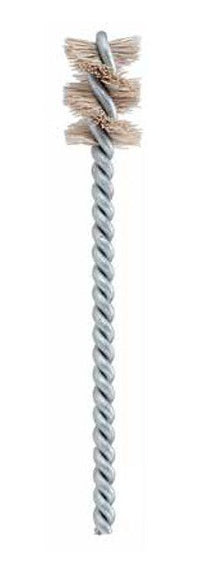

The Tanis Aluminum Oxide Abrasive Nylon Twisted Brush with a 0.765-inch diameter and 600 grit is designed for precise deburring of internal holes without altering dimensions or surface finishes. Crafted with a single stem, single spiral construction, this brush ensures optimal performance in power tools with a continuous end tip style. Operating between 100-500 RPM is recommended for safe use, meeting stringent industry standards for quality and reliability. Ideal for institutions requiring precise deburring solutions.
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
0.765 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.012 in
Specifications Hole Diameter Decimal
0.750 in | 19.05 mm
Specifications Hole Diameter Fractional
3/4 in
Specifications Material
Aluminum Oxide
Specifications Overall Length
5 in
Specifications Size
600 grit
Specifications Stem Diameter
0.221 in
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
