Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

SKU:ABR-9451de

Achieve superior deburring and finishing results with Tanis CeramiX® 4-Inch Shell Mill Disc Brush, designed for precision and durability.

Regular price $69.99
Regular price Sale price $69.99
Sale

Initiate Order

Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

$69.99

Quantity: 1

Claim Your Seller Account

Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

Tanis CeramiX® 4-Inch Shell Mill Disc Brush, 80 Grit

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

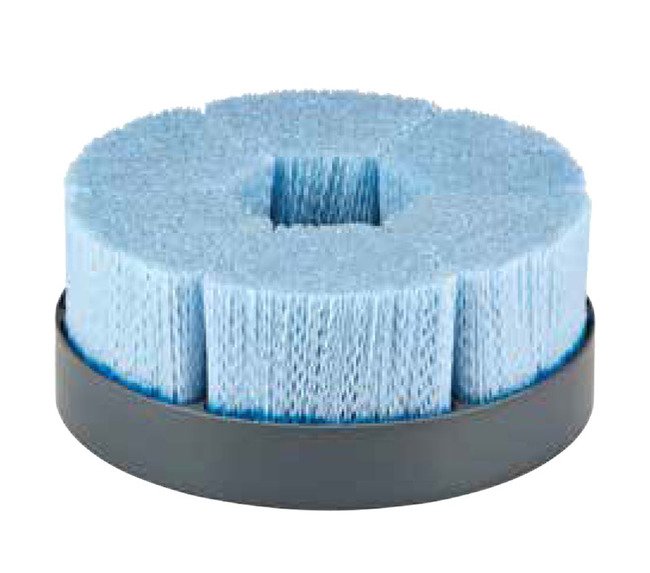

Meet your precise deburring needs with the Tanis CeramiX® 4-Inch Shell Mill Disc Brush featuring 80 grit filament for superior abrasive action. Ideal for CNC machining centers, this brush delivers consistent performance on flat surfaces, enhancing metal finish and blending rough edges on machined parts.

Product Specifications

Accessories

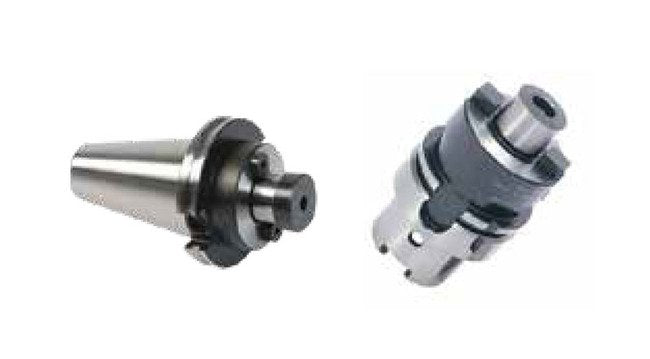

Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35050For Brush Diameter - 4 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35086For Brush Diameter - 4 in.Ring Inside Diameter (ID) - 3-1/4 in.Ring Outside Diameter (OD) - 3-5/8 in.Ring Width - 0.210 in.Package Quantity - 3 per pack.
Applications
Cast Part DeburringAircraft ComponentsDeburring Face-Milled PartsBlending Grinding MarksImproving Surface Finish
Note
Additional diameters and grits available upon request.Both brush patterns feature shell mill mount–fits standard shell mill holders. (Holders are not included.)
Pattern
Apply on large flat surfaces that require tough aggressive performance. The great bristle density creates more deburring and finishing pressure.
Specifications Arbor Hole Size
1-1/4 in
Specifications Brush Diameter
4 in
Specifications Filament Diameter
0.040 in
Specifications Maximum Speed
2500 rpm
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
