Tanis Fine Blanking Disc Brush - 60 Grit, 0.045in Filament, 25mm Trim
Tanis Fine Blanking Disc Brush - 60 Grit, 0.045in Filament, 25mm Trim
SKU:ABR-2e7004
Premium Tanis® Fine Blanking Disc Brush for precise deburring and polishing.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Tanis Fine Blanking Disc Brush - 60 Grit, 0.045in Filament, 25mm Trim
$34.99
Quantity: 1
Claim Your Seller Account
Tanis Fine Blanking Disc Brush - 60 Grit, 0.045in Filament, 25mm Trim
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

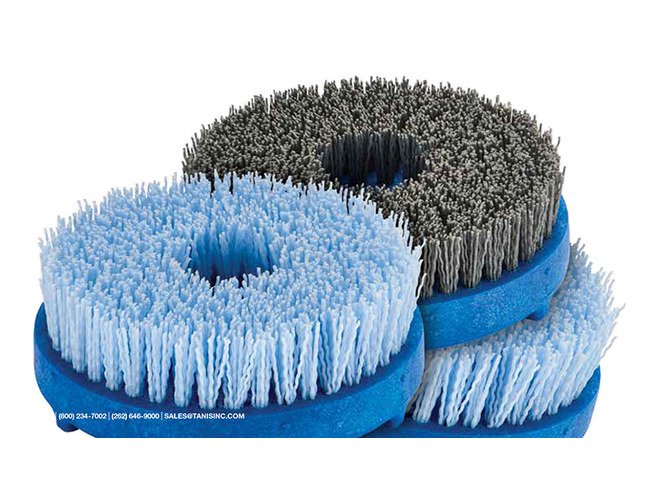

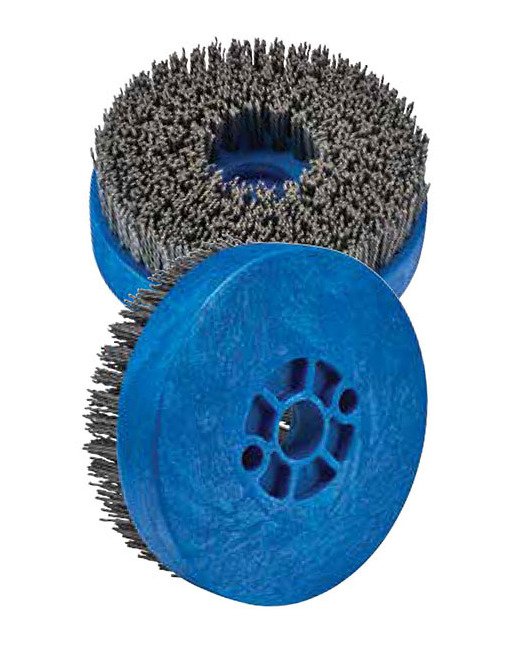

The Tanis® Fine Blanking Disc Brush is specifically designed for stationary finishing machines, compatible with Volbhag, Niederberger, and Peter Wolters models. Ideal for deburring, edge radiusing, and polishing fine-blanked parts, this brush features a 60 grit, 0.045-inch filament diameter, and 25mm trim length. Made of Silicon Carbide, it operates at a maximum speed of 3000 rpm, delivering exceptional performance and precision on machined surfaces.
Product Specifications
Accessories
Disc Brush Drive ArborsDescription - Used to securely mount disc brushes for use in any type of milling or CNC machine. Drive arbor shaft is 3/4" diameter for use in any live tool holder. Drive arbor includes bolt and washer, part no. 35075.Drive Arbor Part Number - 35055For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 2Drive Arbor Part Number - 35060For Brush Diameter - 6 in.Shaft Diameter - 3/4 in.Numbers of Locator Pins - 3.Note - Use with 6" teardrop pattern disc brushes.Replacement Bolt/Washer KitPart Number - 35070Disc Brush BandsDescription - Apply to disc or end brushes to prevent flare and enhance aggressive action. To use, insert bands on disc where filament meets composite material.Part Number - 35090For Brush Diameter - 6 in.Ring Inside Diameter (ID) - 5-1/8 in.Ring Outside Diameter (OD) - 5-5/8 in.Ring Width - 0.275 in.Package Quantity - 3 per pack.
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
25 mm
Specifications Block Thickness
1 in
Specifications Brush Diameter
6 in
Specifications Filament Diameter
0.045 in
Specifications Material
Silicon Carbide
Specifications Maximum Speed
3000 rpm
Specifications Peripheral Angular Speed
23.6 rpm
Specifications Size
60 grit
Specifications Trim Length
25 mm
