Tanis RB Series 8"x18" Conveyor Cylinder Brush
Tanis RB Series 8"x18" Conveyor Cylinder Brush
SKU:MAT-8faa41
High-quality Tanis RB Series Conveyor Cylinder Brush for effective conveyor cleaning and maintenance.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Tanis RB Series 8"x18" Conveyor Cylinder Brush
$139.99
Quantity: 1
Claim Your Seller Account
Tanis RB Series 8"x18" Conveyor Cylinder Brush
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

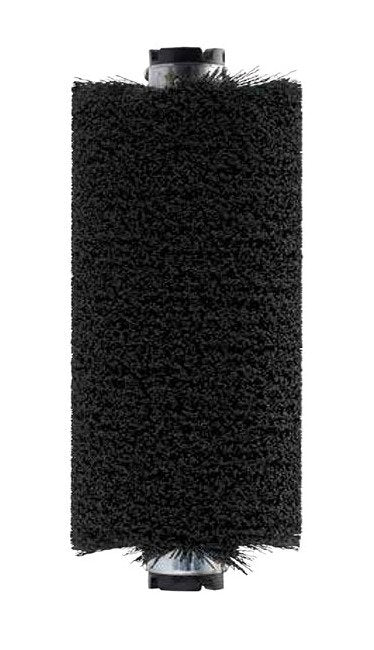

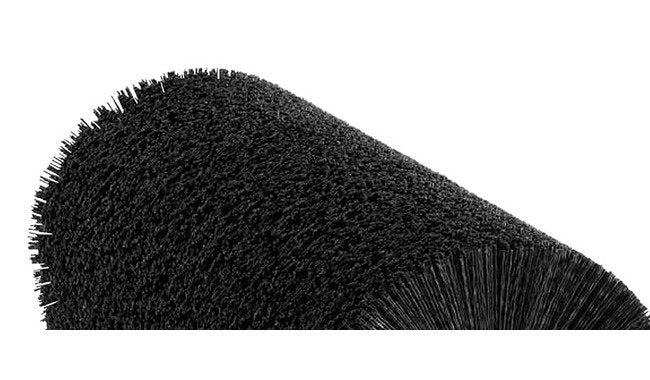

The Tanis RB Series Conveyor Cylinder Brush features coil-wound polypropylene bristles on a 16 gauge steel tube, providing a dense 18" brush face for efficient cleaning and debris removal on conveyor systems. Collar ends with set screws and keyway make mounting easy on 1" shafts. With a durable construction and precise brush concentricity, this brush is ideal for conveyor belting maintenance, debris removal, and product positioning, meeting the high standards of industrial and institutional applications.
Product Specifications
Additional Information

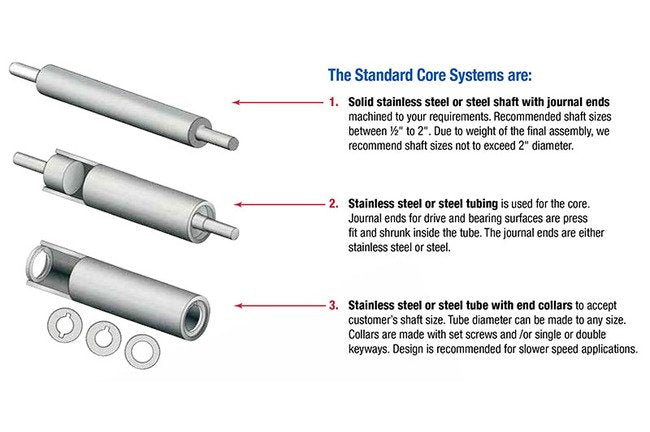

Brush Core ConstructionPrecise cylinder brush core constructions provide excellent brush concentricity. The brush core constructions are illustrated below. Core diameters have no limitations. A larger brush will require a stronger core designed for the application. Shafts can be machined to customer specifications; however weight is a factor in the final assembly. Since most coils are welded directly to a tube or shaft, end rings can be machined to make a better cosmetic appearance or leave the weld and channel exposed for a more economical finish.Coil wound cylinder brushes can be refurbished using the same shaft or tube. Tanis® will remove the worn brush off the existing assembly, then refill the shaft or tube with a new coil wound brush. We can repair journal or stub ends on shafts to provide a new surface for drives and bearings. Dynamic balancing can be provided for a fixed rotation speed or other working conditions in your application.The Standard Core Systems are:Solid stainless steel or steel shaft with journal ends machined to your requirements. Recommended shaft sizes between 1/2" to 2". Due to weight of the final assembly, recommend shaft sizes not to exceed 2" diameter.Stainless steel or steel tubing is used for the core. Journal ends for drive and bearing surfaces are press fit and shrunk inside the tube. The journal ends are either stainless steel or steel.Stainless steel or steel tube with end collars to accept customer's shaft size. Tube diameter can be made to any size. Collars are made with set screws and /or single or double keyways. Design is recommended for slower speed applications.
Specifications Applications
Conveyor
Specifications Backing Size
#7
Specifications Bristle Diameter
0.030 in
Specifications Brush Design
Cylinder

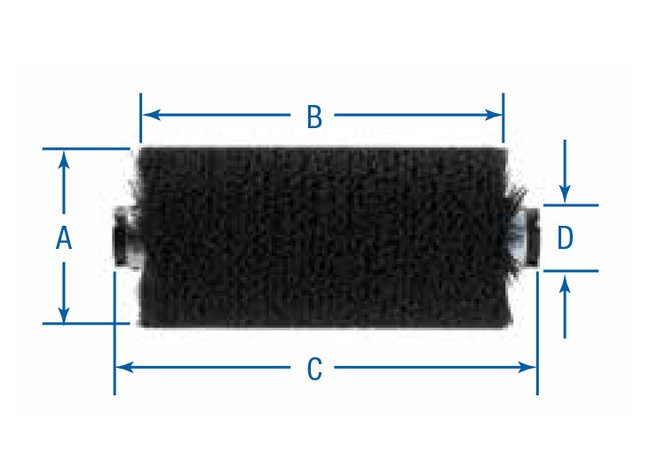

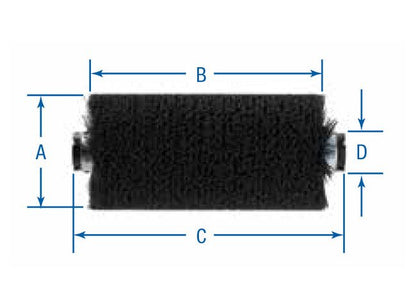

Specifications Brush Diameter A
8 in
Specifications Brush Face B
18 in
Specifications Collar Ends
Isoplast®
Specifications Material
Polypropylene (PP)
Specifications Overall Length C
20 in
Specifications Thickness
16 gauge
Specifications Tube Diameter D
2 in
