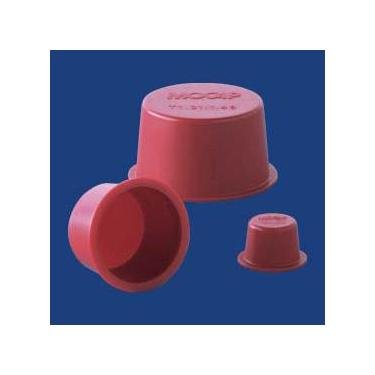

Tapered Polyethylene Plug Cap for Threaded and Non-threaded Applications

Name: Tapered Polyethylene Plug Cap for Threaded and Non-threaded Applications
Brand: MOCAP LLC
SKU: TAP-cc480d
Price: 12.99 USD
Availability: OutOfStock

SKU:TAP-cc480d

Versatile Tapered Polyethylene Plug Caps for reliable protection in industrial applications. Easy to use, remove, and dispose of.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Tapered Polyethylene Plug Caps offer versatile dual function closures suitable for a wide range of applications in industries requiring reliable protection. Made from durable and flexible polyethylene, these caps effectively shield against debris, damage, moisture, and corrosion. Whether used as tube end caps, pipe caps, or plugs for threaded holes and connectors, our caps ensure a secure fit that is easy to remove. Ideal for masking applications as well, these caps serve as cost-effective disposable masking caps for various finishing processes.

Product Specifications

Applications 0

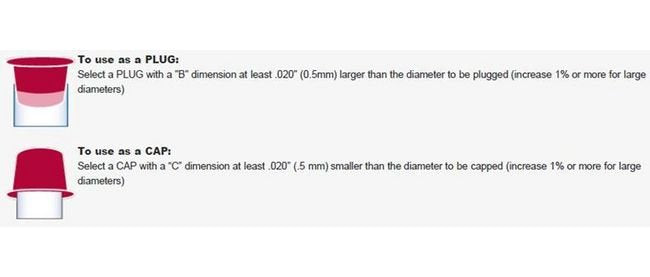

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection

Features 0

Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment

Functions 0

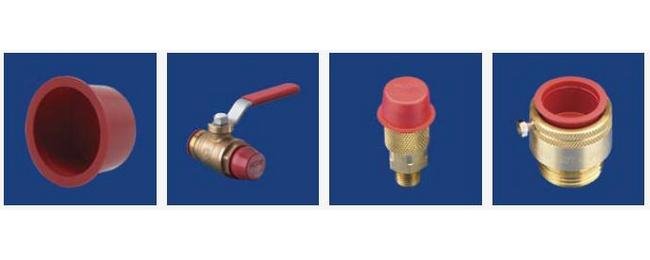

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.

Manufacturing Notes 0

MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.

Masking Applications 0

MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .

Specifications Box Quantity

100

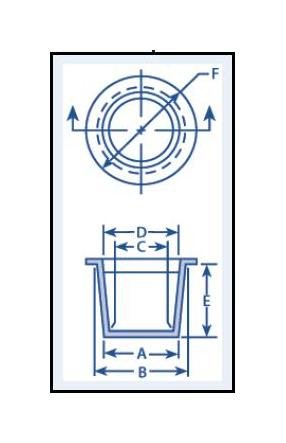

Specifications Flange Outer Diameter Dimension F

7.940 in | 201.7 mm

Specifications Large End Inside Diameter Dimension D

7.560 in | 192.0 mm

Specifications Large End Outer Diameter Dimension B

7.650 in | 194.3 mm

Specifications Length Dimension E

1.000 in | 25.4 mm

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

Specifications Small End Inside Diameter Dimension C

7.260 in | 184.4 mm

Specifications Small End Outer Diameter Dimension A

7.340 in | 186.4 mm
