Tapered Polyethylene Plug Cap for Threaded and Non-Threaded Applications

Name: Tapered Polyethylene Plug Cap for Threaded and Non-Threaded Applications
Brand: MOCAP LLC
SKU: TAP-6bd253
Price: 15.99 USD
Availability: OutOfStock

SKU:TAP-6bd253

Durable Tapered Polyethylene Plug Caps for versatile protection of tube and hydraulic fittings, threaded holes, and more.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

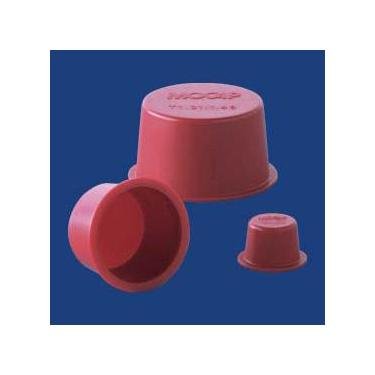

Experience versatile protection with our Tapered Polyethylene Plug Caps designed as dual-function closures. Made from durable yet flexible polyethylene, these caps secure fittings from debris, damage, and corrosion. Use them as plugs for threaded holes or as caps for tube and hydraulic fittings, ensuring reliable product protection.

Product Specifications

Applications 0

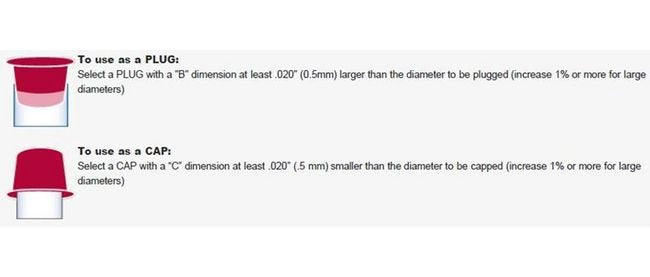

To use as a PLUG: Select a PLUG with a "B" dimension at least 0.020 in (0.5 mm) larger than the diameter to be plugged (increase 1% or more for large diameters)To use as a CAP: Select a CAP with a “C” dimension at least 0.020 inTubesHydraulic FittingsTube End CapsPipe CapsProduct Protection

Features 0

Durable and flexible - Use as a cap or plugProtects against debris, damage, moisture and corrosionMOCAP stocks tapered plastic plug caps in many sizes for immediate shipment

Functions 0

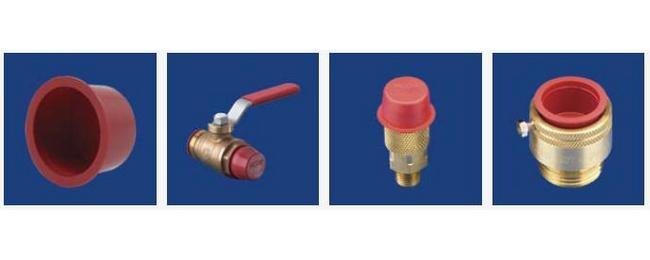

Functions as a Cap : MOCAP T-Series Plastic Plug Cap has a tapered design which allows it to be used as a cap for multiple threaded and non-threaded applications. Review MOCAP's selection of caps.Functions as a Plug : Use MOCAP's Tapered Plug Cap to plug a wide range of openings, including threaded and non threaded holes, pipe and tube end plug, connector ports and fittings. Review MOCAP's selection of plugs.

Manufacturing Notes 0

MOCAP stocks Tapered Plastic Plug Caps in many sizes for immediate shipment.Micro-Packs are only available online.

Masking Applications 0

MOCAP Plug Caps can also be used as inexpensive, single use disposable masking caps or masking plugs for painting, coating and spraying processes up to 175 °F (80 °C). Review MOCAP's complete Line of Masking Products .

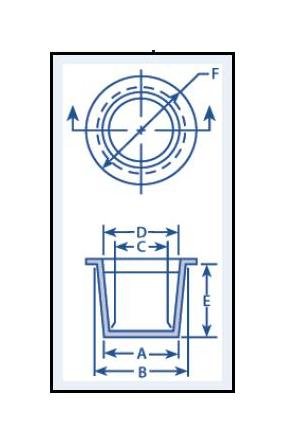

Specifications Box Quantity

500

Specifications Flange Outer Diameter Dimension F

3.500 in | 88.9 mm

Specifications Large End Inside Diameter Dimension D

3.299 in | 83.8 mm

Specifications Large End Outer Diameter Dimension B

3.370 in | 85.6 mm

Specifications Length Dimension E

1.000 in | 25.4 mm

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

100

Specifications Small End Inside Diameter Dimension C

3.020 in | 76.7 mm

Specifications Small End Outer Diameter Dimension A

3.091 in | 78.5 mm

Tapered Polyethylene Plug Cap for Threaded and Non-Threaded Applications
