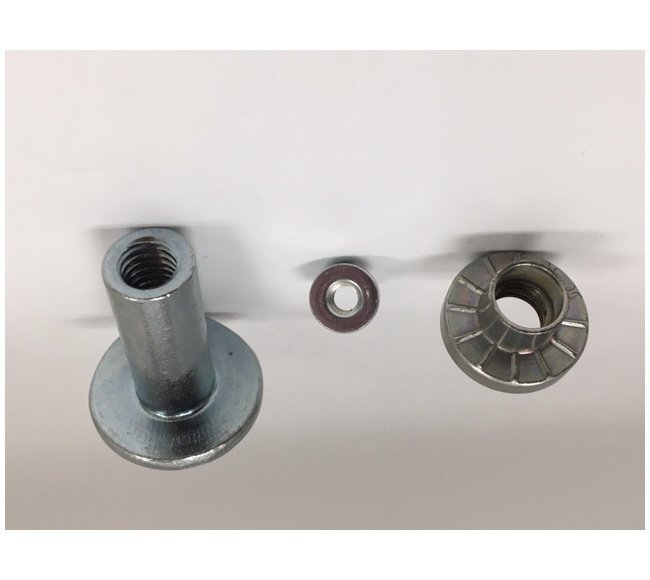

A variation of tubular rivets with a shank drilled and tapped to receive a threaded fastener. Used in materials too thin to accept their own tapping. Chicago Rivet makes tapped rivets with both through holes and blind holes. In addition, we manufacture tapped rivets with weld tip projections that permit the part to be resistance welded to an assembly. This is a partial listing of our custom part capabilities. Please contact our engineering department to discuss your requirements, should they not be listed.

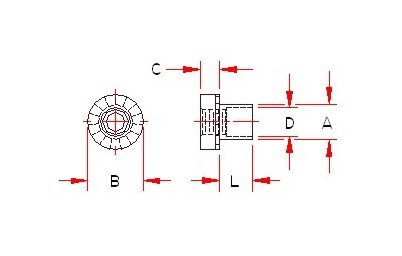

Product Specifications
Specifications A Body Diameter
.222 to .230 Inch
Specifications B Head Diameter
.367 to .383 Inch
Specifications C Head Height
.130 to .140 Inch
Specifications D Straight Hole Diameter
.185 Inch
Specifications Material
Brass
Specifications Serration Under Head
16
Specifications Tap
#8-32 NC2
