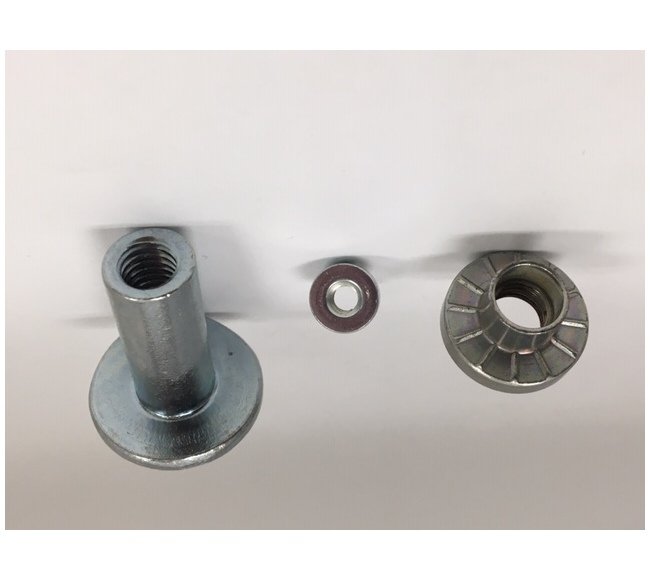

A variation of tubular rivets with a shank drilled and tapped to receive a threaded fastener. Used in materials too thin to accept their own tapping. Chicago Rivet makes tapped rivets with both through holes and blind holes. In addition, we manufacture tapped rivets with weld tip projections that permit the part to be resistance welded to an assembly. This is a partial listing of our custom part capabilities. Please contact our engineering department to discuss your requirements, should they not be listed.

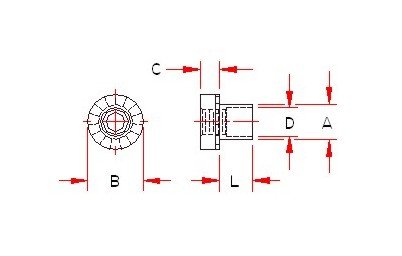

Product Specifications
Specifications A Body Diameter
.186 to .192 Inch
Specifications B Head Diameter
.337 to .347 Inch
Specifications C Head Height
.114 to .124 Inch
Specifications D Straight Hole Diameter
.136 Inch
Specifications Material
Brass
Specifications Serration Under Head
12
Specifications Tap
#5-40 NC2
