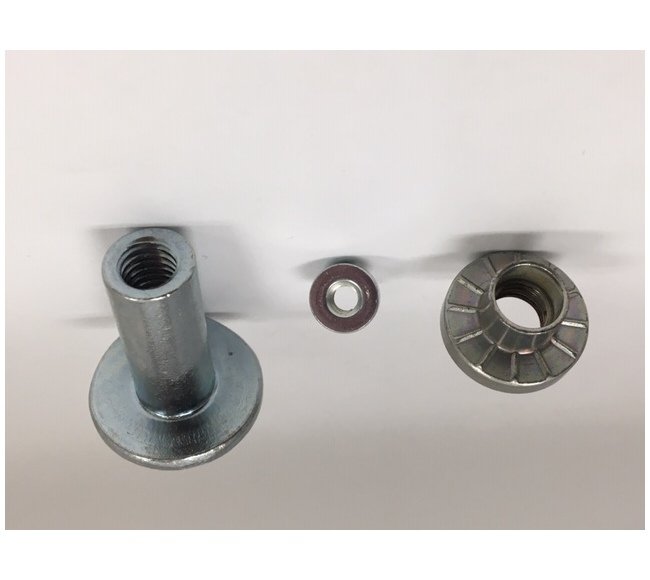

A variation of tubular rivets with a shank drilled and tapped to receive a threaded fastener. Used in materials too thin to accept their own tapping. Chicago Rivet makes tapped rivets with both through holes and blind holes. In addition, we manufacture tapped rivets with weld tip projections that permit the part to be resistance welded to an assembly. This is a partial listing of our custom part capabilities. Please contact our engineering department to discuss your requirements, should they not be listed.
Product Specifications

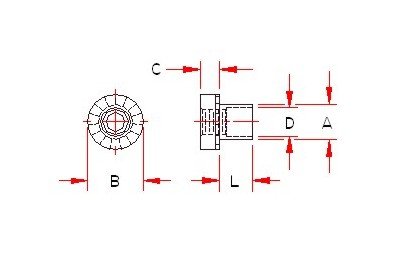

Specifications A Body Diameter
.145 to .151 Inch
Specifications B Head Diameter
.276 to .286 Inch
Specifications C Head Height
.085 to .091 Inch
Specifications D Straight Hole Diameter
.099 Inch
Specifications Material
Aluminium
Specifications Serration Under Head
15
Specifications Tap
#3-48 NC2
