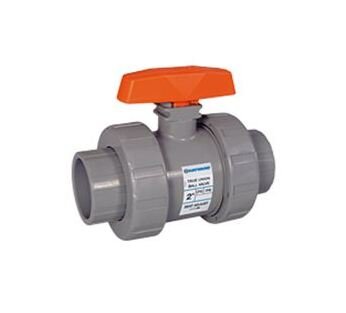

TB Series True Union Ball Valve - 3/4" PVC with FPM O-rings & Flanged Ends

Name: TB Series True Union Ball Valve - 3/4" PVC with FPM O-rings & Flanged Ends
Brand: Hayward Flow Control
SKU: TRU-5a5d0b
Price: 29.99 USD
Availability: OutOfStock

SKU:TRU-5a5d0b

Premium 3/4" PVC True Union Ball Valve with FPM O-rings & Flanged Ends, NSF/ANSI 61-G Listed

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The TB Series True Union Ball Valve is a top-quality PVC valve featuring durable FPM O-rings, reversible PTFE seats, and flanged end connections. Sized at 3/4", this bi-directional valve offers a Cv Coefficient of 16.0, ensuring efficient flow control. With a 250psi rating at 70°F, this valve meets NSF/ANSI 61-G Standards, making it ideal for a wide range of applications. Trust in its performance, reliability, and compliance with industry standards for your fluid system needs.

Product Specifications

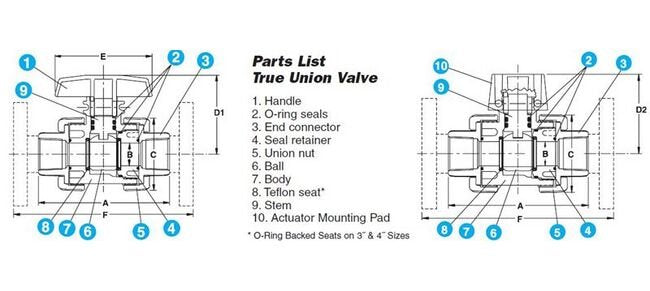

Dimensional Attributes A

4.83 in | 122.68 mm

Dimensional Attributes B

0.75 in | 19.05 mm

Dimensional Attributes C

2.63 in | 66.80 mm

Dimensional Attributes D1

3.02 in | 76.71 mm

Dimensional Attributes D2

2.81 in | 71.37 mm

Dimensional Attributes F

7.23 in | 183.64 mm

Dimensional Attributes H

3.00 in | 76.20 mm

Specifications Body Material

PVC

Specifications Cv Coefficient

16.0

Specifications End Connection

Flanged

Specifications Flow Configuration

Bi-directional

Specifications Seals

FPM

Specifications Series

Specifications Size

3/4"

Specifications Weight

1.00 lb | 0.45 kg
