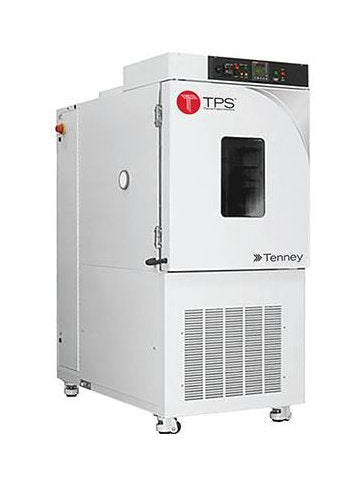

Tenney TC Series Cycling Test Chambers are offspring of the new, advanced C-EVO test chambers and have many of the same design features. These include a high volume horizontal-down type air circulation system with an electric heating system, a mechanical refrigeration system, and a vapor injection type humidification system to condition the product. A diversity of optional equipment can be employed to enhance conditioning.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
275 CFM
Specifications Capacity
20 ft³ | 566 L
Specifications Condenser
2
Specifications Empty Chamber Cooling Rate From 85 To 20c
2.6 ºC/min
Specifications Empty Chamber Cooling Time From 85 To 20c
40 min
Specifications Empty Chamber Heating Rate From 20 To 85c
3.4 ºC/min
Specifications Empty Chamber Heating Rate From 34c To Ambient
3.5 ºC/min
Specifications Empty Chamber Heating Time From 20 To 85c
31 min
Specifications Empty Chamber Heating Time From 34c To Ambient
17 min
Specifications Exterior Depth
64 in | 163 cm
Specifications Exterior Height
77 in | 196 cm
Specifications Exterior Width
46 in | 117 cm
Specifications Features
Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Backup safety thermal cutoff | Chamber vent port | Smart 1.0 3.5 Inch (in) | Solid state humidity sensor | Main electrical disconnect
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
50 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
930 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
40 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
20 A
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-35 ºC
Specifications Options
Chamber light | FM approved safety OTP | Heated viewing glass | Shelves | UL 508A compliant
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Relative Humidity Control
2 %
Specifications Relative Humidity Range
20 to 95 %
Specifications Standard Controller Features

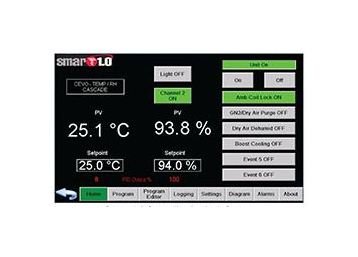

32bit RISC 400 MHz Central Processing Unit | 4GB (SD) Flash Storage - Up To 100 Profiles with 100 Steps Each | FTP Access via Ethernet Connection | High Resolution Graphical Touch Screen | Individual PID Control Loops
Specifications Temperature Control
±0.3ºC after stabilization
Specifications Temperature Uniformity At 65c
0.3 ºC
Specifications Voltage
208 to 230 V | 460 V
Specifications Weight
1100 lb
Specifications Workspace Depth
32 in | 85 cm
Specifications Workspace Height
36 in | 91 cm
Specifications Workspace Width
30 in | 76 cm
