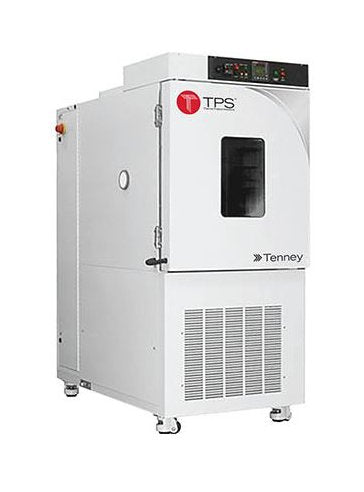

Tenney TC Series Cycling Test Chambers are offspring of the new, advanced C-EVO test chambers and have many of the same design features. These include a high volume horizontal-down type air circulation system with an electric heating system, a mechanical refrigeration system, and a vapor injection type humidification system to condition the product. A diversity of optional equipment can be employed to enhance conditioning.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
250 CFM
Specifications Capacity
64 ft³ | 1812 L
Specifications Condenser
2
Specifications Empty Chamber Cooling Rate From 125 To 40c
1.1 ºC/min
Specifications Empty Chamber Cooling Rate From 180 To 65c
0.7 ºC/min
Specifications Empty Chamber Cooling Rate From 85 To 40c
0.9 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 40c
0.9 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 68c
0.4 ºC/min
Specifications Empty Chamber Cooling Time From 125 To 40c
130 min
Specifications Empty Chamber Cooling Time From 180 To 65c
211 min
Specifications Empty Chamber Cooling Time From 85 To 40c
119 min
Specifications Empty Chamber Cooling Time From Ambient To 40c
61 min
Specifications Empty Chamber Cooling Time From Ambient To 68c
216 min
Specifications Empty Chamber Heating Rate From 40 To 125c
1.3 ºC/min
Specifications Empty Chamber Heating Rate From 40 To 85c
1.4 ºC/min
Specifications Empty Chamber Heating Rate From 65 To 180c
1.1 ºC/min
Specifications Empty Chamber Heating Rate From 68c To Ambient
1.4 ºC/min
Specifications Empty Chamber Heating Time From 40 To 125c
107 min
Specifications Empty Chamber Heating Time From 40 To 85c
78 min
Specifications Empty Chamber Heating Time From 65 To 180c
181 min
Specifications Empty Chamber Heating Time From 68c To Ambient
55 min
Specifications Exterior Depth
83 in | 211 cm
Specifications Exterior Height
90 in | 229 cm
Specifications Exterior Width
67.5 in | 171 cm
Specifications Features

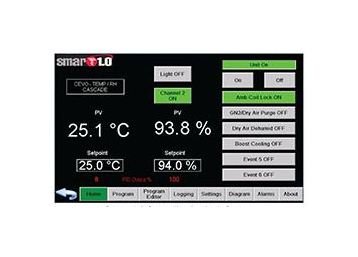

Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Backup safety thermal cutoff | Chamber vent port | Smart 1.0 3.5 Inch (in) | Solid state humidity sensor | Main electrical disconnect
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
60 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
965 W
Specifications Live Load At 40c
850 W
Specifications Live Load At 54c
500 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
45 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
23 A
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-73 ºC
Specifications Voltage
208 to 230 V | 460 V
Specifications Workspace Depth
48 in | 122 cm
Specifications Workspace Height
48 in | 122 cm
Specifications Workspace Width
48 in | 122 cm
