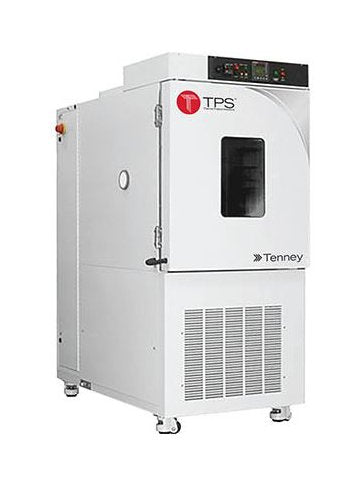

TC10S, Tenney TC Series Cycling Test Chamber
TC10S, Tenney TC Series Cycling Test Chamber
SKU:TEN-a62f39
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TC10S, Tenney TC Series Cycling Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
TC10S, Tenney TC Series Cycling Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Tenney TC Series Cycling Test Chambers are offspring of the new, advanced C-EVO test chambers and have many of the same design features. These include a high volume horizontal-down type air circulation system with an electric heating system, a mechanical refrigeration system, and a vapor injection type humidification system to condition the product. A diversity of optional equipment can be employed to enhance conditioning.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
275 CFM
Specifications Capacity
20 ft³ | 566 L
Specifications Condenser
2
Specifications Empty Chamber Cooling Rate From 125 To 40c
2.6 ºC/min
Specifications Empty Chamber Cooling Rate From 180 To 65c
1.8 ºC/min
Specifications Empty Chamber Cooling Rate From 85 To 40c
2.3 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 40c
2.4 ºC/min
Specifications Empty Chamber Cooling Rate From Ambient To 68c
1.2 ºC/min
Specifications Empty Chamber Cooling Time From 125 To 40c
63 min
Specifications Empty Chamber Cooling Time From 180 To 65c
133 min
Specifications Empty Chamber Cooling Time From 85 To 40c
54 min
Specifications Empty Chamber Cooling Time From Ambient To 40c
27 min
Specifications Empty Chamber Cooling Time From Ambient To 68c
78 min
Specifications Empty Chamber Heating Rate From 34c To Ambient
3.5 ºC/min
Specifications Empty Chamber Heating Rate From 40 To 125c
3.2 ºC/min
Specifications Empty Chamber Heating Rate From 40 To 85c
3.4 ºC/min
Specifications Empty Chamber Heating Rate From 65 To 180c
3.2 ºC/min
Specifications Empty Chamber Heating Rate From 68c To Ambient
3.4 ºC/min
Specifications Empty Chamber Heating Time From 34c To Ambient
17 min
Specifications Empty Chamber Heating Time From 40 To 125c
51 min
Specifications Empty Chamber Heating Time From 40 To 85c
37 min
Specifications Empty Chamber Heating Time From 65 To 180c
77 min
Specifications Empty Chamber Heating Time From 68c To Ambient
27 min
Specifications Exterior Depth
64 in | 163 cm
Specifications Exterior Height
77 in | 196 cm
Specifications Exterior Width
46 in | 117 cm
Specifications Features

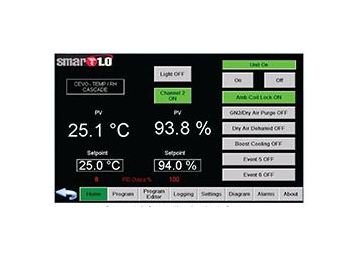

Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Backup safety thermal cutoff | Chamber vent port | Smart 1.0 3.5 Inch (in) | Solid state humidity sensor | Main electrical disconnect
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
60 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
1320 W
Specifications Live Load At 40c
1065 W
Specifications Live Load At 54c
810 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
45 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
23 A
Specifications Voltage
208 to 230 V | 460 V
Specifications Workspace Depth
32 in | 85 cm
Specifications Workspace Height
36 in | 91 cm
Specifications Workspace Width
30 in | 76 cm
