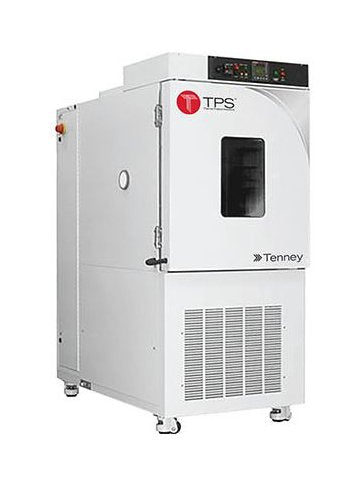

Tenney TC Series Cycling Test Chambers are offspring of the new, advanced C-EVO test chambers and have many of the same design features. These include a high volume horizontal-down type air circulation system with an electric heating system, a mechanical refrigeration system, and a vapor injection type humidification system to condition the product. A diversity of optional equipment can be employed to enhance conditioning.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Flow Rate
250 CFM
Specifications Capacity
40 ft³ | 1132 L
Specifications Condenser
2
Specifications Empty Chamber Cooling Rate From 85 To 20c
1.5 ºC/min
Specifications Empty Chamber Cooling Time From 85 To 20c
64.8 min
Specifications Empty Chamber Heating Rate From 20 To 85c
2.1 ºC/min
Specifications Empty Chamber Heating Rate From 34c To Ambient
2.3 ºC/min
Specifications Empty Chamber Heating Time From 20 To 85c
48 min
Specifications Empty Chamber Heating Time From 34c To Ambient
25 min
Specifications Exterior Depth
78.5 in | 199 cm
Specifications Exterior Height
82 in | 208 cm
Specifications Exterior Width
59.5 in | 151 cm
Specifications Features
Platinum RTD temperature sensor | Heavy-duty leveling casters | Nichrome wire air heater | Solid-state pressure switches | Backup safety thermal cutoff | Chamber vent port | Smart 1.0 3.5 Inch (in) | Solid state humidity sensor | Main electrical disconnect
Specifications Frequency
60 Hz
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
50 A
Specifications Fuse Current At 460 Volts V 1 Phase 60 Hertz Hz
30 A
Specifications Heat Capacity
3 kW
Specifications Live Load At 18c
500 W
Specifications Load Current At 208 203 Volts V 1 Phase 60 Hertz
40 A
Specifications Load Current At 460 Volts V 1 Phase 60 Hertz Hz
20 A
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-35 ºC
Specifications Options
Chamber light | FM approved safety OTP | Heated viewing glass | Shelves | UL 508A compliant
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Relative Humidity Control
2 %
Specifications Relative Humidity Range
10 to 95 %

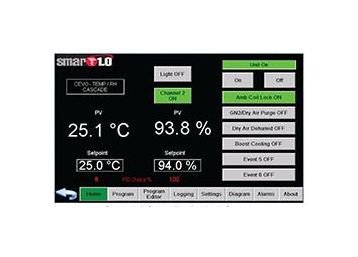

Specifications Standard Controller Features
32bit RISC 400 MHz Central Processing Unit | 4GB (SD) Flash Storage - Up To 100 Profiles with 100 Steps Each | FTP Access via Ethernet Connection | High Resolution Graphical Touch Screen | Individual PID Control Loops
Specifications Temperature Control
±0.3ºC after stabilization
Specifications Temperature Uniformity At 65c
0.3 ºC
Specifications Voltage
208 to 230 V | 460 V
Specifications Weight
1350 lb
Specifications Workspace Depth
44 in | 112 cm
Specifications Workspace Height
40 in | 102 cm
Specifications Workspace Width
40 in | 102 cm
