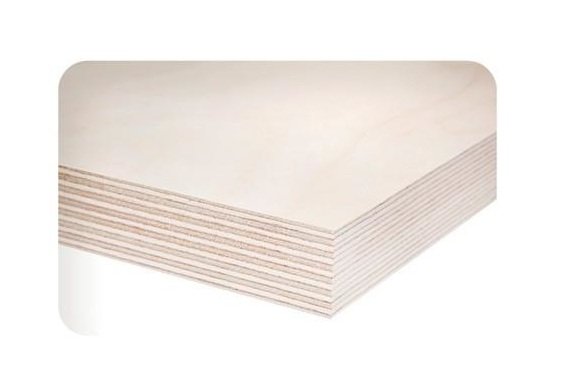

TCL 8x4 Birch Exterior Plywood
TCL 8x4 Birch Exterior Plywood
SKU:TCL-aa68c7
Highly durable Birch Exterior Plywood with exceptional moisture resistance, ideal for trailers & concrete formwork.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TCL 8x4 Birch Exterior Plywood
$49.99
Quantity: 1
Claim Your Seller Account
TCL 8x4 Birch Exterior Plywood
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TCL 8x4 Birch Exterior Plywood is a top-tier choice for applications requiring exceptional durability and moisture resistance. Ideal for enclosed trailers, utility trailers, concert stages, and more, this plywood boasts high water-resistance, various thicknesses and sizes, and superior wear resistance. With formaldehyde emission class E1 and compliance with industry standards, this plywood ensures longevity and reliability in diverse environments.
Product Specifications
Number Of Sheets In A Crate Crate Height 400mm
12 | 14 | 16 | 19 | 22 | 26 | 33 | 40 | 44 | 50 | 65
Number Of Sheets In A Crate Crate Height 600mm
20 | 22 | 25 | 29 | 33 | 40 | 50 | 60 | 67 | 75 | 100
Number Of Sheets In A Crate Thicknesses
10 mm | 12 mm | 15 mm | 18 mm | 21 mm | 24 mm | 27 mm | 30 mm | 6 mm | 8 mm | 9 mm
Size Tolerances Exterior Tolerance
±4,0 mm
Size Tolerances Length Or Width Of Plywood Sheets
1220, 1250 mm | 2440, 2500 mm
Specifications Available Sizes
10 x 4 | 10 x 5 | 12 x 4 | 8 x 5
Specifications Key Benefits
Exceptional Durability and Wear Resistance High | Higher Water-Resistance Comes in a Variety of Thicknesses and Sizes | Surface Hardness
Specifications Main Applications
Enclosed Trailers: Cargo & Concession Trailers | Horse / Livestock Trailers | Recreational Trailers: Travel Trailer, Caravans, Mobile Homes | Utility Trailers
Specifications Other Applications
Concert Stage | Concrete Formwork
Specifications Product Applications
Enclosed Trailers | Horse/ Livestock Trailers | Recreational Trailers | Utility Trailers
Strength And Elasticity Properties Minimum Modulus Of Elasticity
In Static Bending along the Grain: 7000
Strength And Elasticity Properties Minimum Ultimate Srength Mpa
In Static Bending along Outer Layer Grain: 60 | In Tension along the Grain: 40 | Shear on Glue Layer: 1,5
Technical Characteristics Density
640-700 kg/m³
Technical Characteristics Formaldehyde Emission Class
Ð1
Technical Characteristics Grading
I (B, S) | II (BB) | III (CP) | IV (C)
Technical Characteristics Moisture Content
5-10 %
Technical Characteristics Standard Sizes
2440 Ñ
1220 mm | 8 x 4 ft
Technical Characteristics Standard Thickness
6-30 mm
Technical Characteristics Surface Quality
One Side Sanded (S1S) | Outer Layers Sanded (S2S) | Unsanded (NS)
Technical Characteristics Waterproofness
Higher
Tolerances Number Of Plies
11 | 13 | 15 | 17 | 19 | 21 | 5 | 6 & 7 | 7 & 8 | 9
Tolerances Sanded Maximum Difference In Measurements
1 mm | 0,6 mm
Tolerances Sanded Tolerance
- 0,1; - 1,1 mm | - 0,2; - 1,8 mm | - 0,3; - 1,5 mm | - 0,4; - 2,0 mm | + 0,4; - 0,5 mm | + 0,4; - 0,6 mm | + 0,5; - 0,6 mm | + 0,5; - 0,7 mm | + 0,6; - 0,8 mm | + 0,7; - 0,9 mm
Tolerances Unsanded Maximum Measurements
1,0 mm | 1,5 mm | 2,0 mm
Tolerances Unsanded Tolerance
- 0,1; - 1,1 mm | - 0,2; - 1,8 mm | - 0,3; - 1,5 mm | - 0,4; - 2,0 mm | + 0,9; - 0,4 mm | + 1,0; - 0,5 mm | + 1,1; - 0,6 mm | + 1,2; - 0,7 mm | + 1,3; - 0,8 mm
