TCL 8x4 Film Faced Plywood for Trailers & More
TCL 8x4 Film Faced Plywood for Trailers & More
SKU:TCL-fba9d8

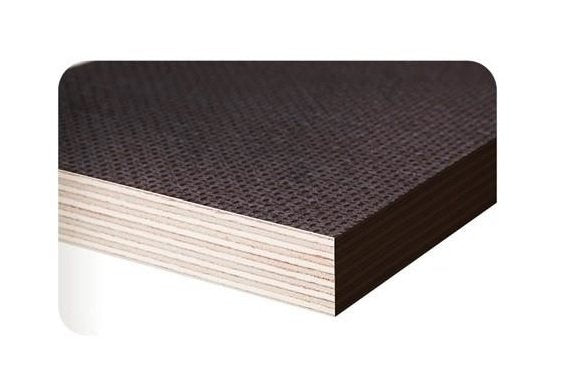

High-quality birch plywood with wire mesh film for slip protection in various trailer applications. Water-resistant and durable construction.
Regular price
$55.99
Regular price
Sale price
$55.99
Unit price
per
Initiate Order
TCL 8x4 Film Faced Plywood for Trailers & More
$55.99
Quantity: 1
Claim Your Seller Account
TCL 8x4 Film Faced Plywood for Trailers & More
$55.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your trailer projects with the TCL 8x4 Film Faced Plywood. This high-quality birch plywood features a special wire mesh film for slip protection and abrasion resistance. With water-resistant acrylic edges and a variety of sizes/thicknesses, it offers enhanced durability, surface hardness, and maximum protection against slippage. Perfect for enclosed, horse/ livestock, recreational, and utility trailers, as well as concert stages and concrete formwork.
Product Specifications
Number Of Sheets In A Crate Crate Height 400mm
12 | 14 | 16 | 19 | 22 | 26 | 33 | 40 | 44 | 50 | 65
Number Of Sheets In A Crate Crate Height 600mm
20 | 22 | 25 | 29 | 33 | 40 | 50 | 60 | 67 | 75 | 100
Number Of Sheets In A Crate Thicknesses
10 mm | 12 mm | 15 mm | 18 mm | 21 mm | 24 mm | 27 mm | 30 mm | 6 mm | 8 mm | 9 mm
Size Tolerances Film Faced Tolerance
±5,0 mm
Size Tolerances Length Or Width Of Plywood Sheets
1220, 1250 mm | 2440, 2500 mm
Specifications Available Sizes
10 x 4 | 10 x 5 | 12 x 4 | 8 x 5
Specifications Key Benefits
Comes in a Variety of Thicknesses and Sizes | Enhanced Resistance to Abrasion Strong | Exceptional Durability | High Surface Hardness | Higher Water-Resistance | Maximum Protection against Slippage (Film with Wire Mesh Surface) | Resistance to most of Chemicals
Specifications Main Applications
Enclosed Trailers: Cargo & Concession Trailers | Horse / Livestock Trailers | Recreational Trailers: Travel Trailer, Caravans, Mobile Homes | Utility Trailers
Specifications Other Applications
Concert Stage | Concrete Formwork
Specifications Product Applications
Enclosed Trailers | Horse/ Livestock Trailers | Recreational Trailers | Utility Trailers
Strength And Elasticity Properties Minimum Modulus Of Elasticity
In Static Bending along the Grain: 7000
Strength And Elasticity Properties Minimum Ultimate Srength Mpa
In Static Bending along Outer Layer Grain: 60 | In Tension along the Grain: 40 | Shear on Glue Layer: 1,5
Technical Characteristics Density
640-700 kg/m³
Technical Characteristics Edge Sealing
Waterproof Acrylic Paint
Technical Characteristics Formaldehyde Emission Class
Ð1
Technical Characteristics Grading
I
Technical Characteristics Moisture Content
5-10 %
Technical Characteristics Standard Sizes
2440 Ñ
1220 mm | 8 x 4 ft
Technical Characteristics Standard Thickness
9-30 mm
Technical Characteristics Surface Quality
Smooth (F/F) | Smooth/Wire Mesh (F/W)
Technical Characteristics Waterproofness
Higher
Tolerances Maximum Difference In Measurements
1 mm | 0,6 mm
Tolerances Number Of Plies
11 | 13 | 15 | 17 | 19 | 21 | 5 | 6 & 7 | 7 & 8 | 9
Tolerances Tolerance
- 0,1; -1,1 mm | - 0,2; + 0,5 mm | - 0,2; -1,8 mm | - 0,3; -1,3 mm | - 0,4; +1,0 mm | ± 0,5 mm | ± 0,7 mm | ± 1,0 mm
Transport Loading Capacity Quantity Of Crates
Container: 25 | Railcar: 48 | Truck: 20
Transport Loading Capacity Volume
Container: 38 m³ | Railcar: 70 m³ | Truck: 30 m³
