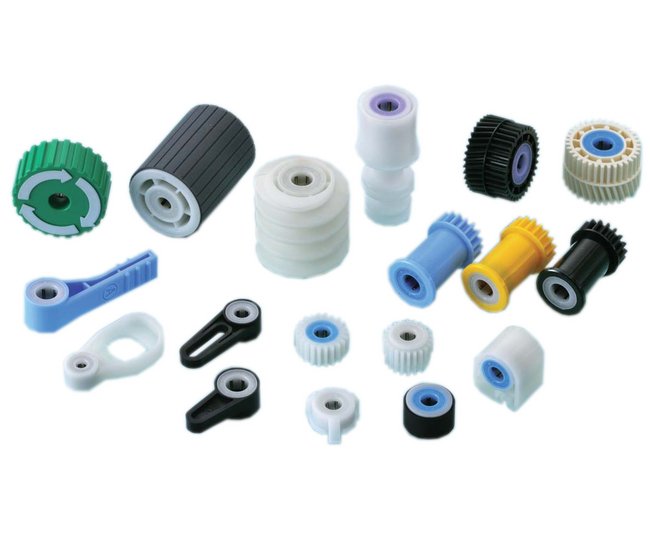

TCM Series Metal Spring One-Way Clutch
TCM Series Metal Spring One-Way Clutch
SKU:TCM-56d36e
Reliable TCM Series Metal Spring One-Way Clutch for precise torque control in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TCM Series Metal Spring One-Way Clutch
$49.99
Quantity: 1
Claim Your Seller Account
TCM Series Metal Spring One-Way Clutch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TCM Series Metal Spring One-Way Clutch offers a compact design and a wide range of functions suitable for various applications. With an allowable torque of 0.59 N·m and clockwise locking direction, this clutch ensures reliable performance. Crafted with ASTM Water-Hardened Steel and meeting ISO and industry standards, this clutch is designed for longevity and efficiency.
Product Specifications
Applications Applications
Copy machines, fax machines, Printers, all-in one office machine's packaging machines, postage machines, vending machines, cash registers, blinds and other feeding equipment for paper and tapes.
Features Features
Wide range of various functionsSpace saving compact designA consistent and high clutching TorqueA shaft with a integral formed bearingA wide range of available shaftsA wide range of shaft materials
Note Note For Test Results

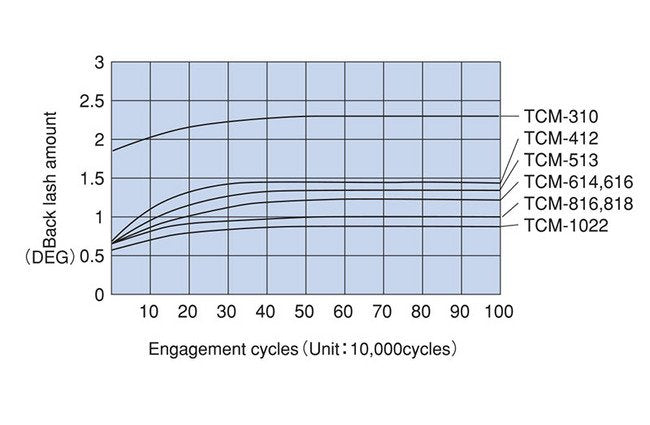

After 1,000,000 engagement test with rated torques load, every TCM and TCX clutch had a slight increase in back-lash, but was within the company's standards of 2.5 degrees.Applied torque for measuring back-lash : 0.098 N·m (lkgf·cm)
Recommended Shaft Note For Recommended Shaft Specifications
Operating temperature: 0 degrees C to 60 degrees C (For higher temperature use, please contact our sales/engineering department).Some surface treatments to the shaft may reduce clutch functionsLow surface hardness or soft materials may reduce the full life of the clutch, only use materials that are recommended by our engineering department.In order to avoid improper operation or malfunctions do not use the uni-directional clutch under these conditions:Direct vibration from machinesAvoid shaft sliding due to axial forceThe use of solid lubricantsIn high dust areas
Recommended Shaft Recommended Shaft Specifications
When inserting the shaft into a uni-directional clutch, turn the clutch in the direction of the free rotation. Any sharp edge around the shaft use be chamfered or removed. The above test was achieved using grounded shaft of bearing steel, hardened to 600 to 800 Hv. Stainless Steel and free cutting steel may also be used in standard operating conditions.
Specifications Allowable Torque
0.59 N·m | 6 kgf·cm
Specifications Application Shaft Diameter
6.35 mm
Specifications Limiter Style
One-Way
Specifications Locking Direction Shaft Fixed
Clockwise (CW)
Specifications Tolerance For Application Shaft Diameter
-0.03 mm | 0 mm
Specifications Torque
2.94 ⥠mN·m | 30 ⥠gf·cm
Test Results Engagement Cycle
240 cycles/min
Test Results Oscillation Angle
30 º
Test Results Radial Load
9.8 N | 1 kgf
Test Results Shaft Material
American Society for Testing and Materials (ASTM) Water-Hardened Steel (W1-10)
Test Results Shaft Tolerance Zone
ISO 286-2:2010 h9
Test Results Surface Hardness
700 HV
