Tee Fittings Class 3000 Socket-Weld (2"/50mm)
Tee Fittings Class 3000 Socket-Weld (2"/50mm)
SKU:FIT-fd0a6a
High-quality Tee Fittings designed for secure, efficient socket-weld connections in industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Tee Fittings Class 3000 Socket-Weld (2"/50mm)
$349.99
Quantity: 1
Claim Your Seller Account
Tee Fittings Class 3000 Socket-Weld (2"/50mm)
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

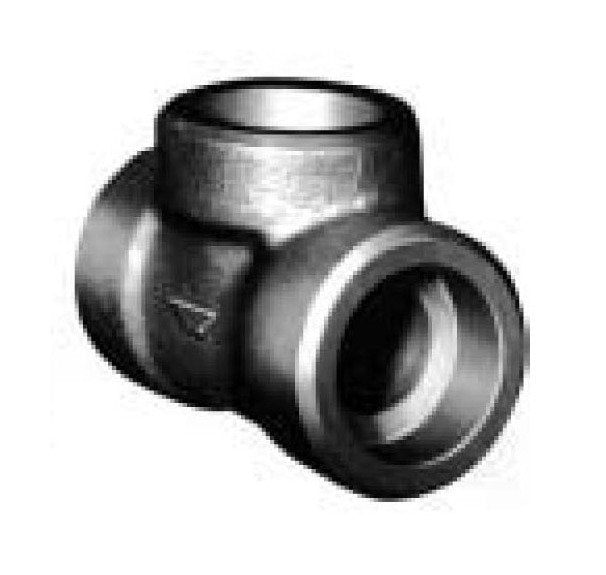

The Tee Fittings Class 3000 Socket-Weld are precision-engineered for durability and efficiency. With a Socket Diameter of 61-62mm, Bore Diameter of 52-53mm, and Minimum Socket Depth of 16mm, these fittings ensure secure joints and optimal flow. Weighing 249kg per 100 pieces, they provide reliability and strength suitable for industrial applications. Compliant with ASTM standards, these forged steel fittings are designed to meet the rigorous requirements of government and institutional procurement.

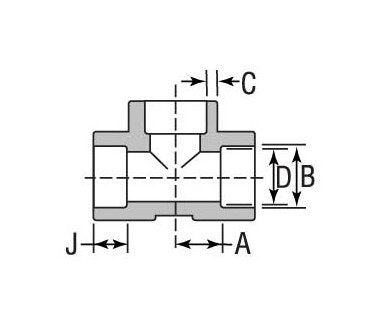

Product Specifications
Specifications Bore Diameter D
52 mm | 53 mm
Specifications Dimension A
38.00 mm
Specifications Dimension C Min
6 mm
Specifications Dn
50
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2
Specifications Socket Diameter B
61 mm | 62 mm
Specifications Weight100 Pieces
249 kg
