The Telecom Data/Voice Coupling Transformer is specially designed to meet the stringent requirements of telecommunications applications, ensuring seamless access over leased private lines and dial-up networks. Ideal for impedance matching, isolation, line balancing, and more, this transformer from the TY series boasts exceptional features including Min. Longitudinal Balance of 45 dB | 60 dB, Dielectric Strength of 1500 V, and a Frequency Range of 300 to 3500 Hz. With compliance to FCC Part 68 standards, it guarantees reliable performance and superior quality for bridging circuits, hybrid circuits, and other critical applications.
Ready to Grow Without Cash Flow Constraints?

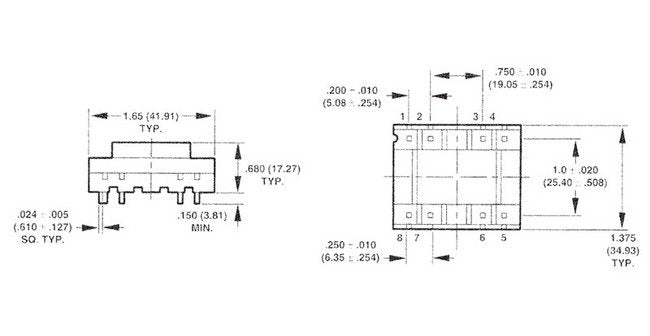

Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Max Dc Current
75 mA
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
150 Ohm | 600 Ohm
Specifications Schematic
Schematic 2
Specifications Secondary Impedance
600 Ohm
Specifications Transformer Contact Type
Split
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.5 dB
Specifications Return Loss
10 dB
Technical Notes 0
Primary connections shown on left side of schematics.
