Telecom Data/Voice Coupling Transformer
Telecom Data/Voice Coupling Transformer
SKU:AUD-cf4436
Versatile Data/Voice Coupling Transformer, meets FCC Part 68 standards, ideal for bridging circuits and hybrid circuits.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Telecom Data/Voice Coupling Transformer
$49.99
Quantity: 1
Claim Your Seller Account
Telecom Data/Voice Coupling Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

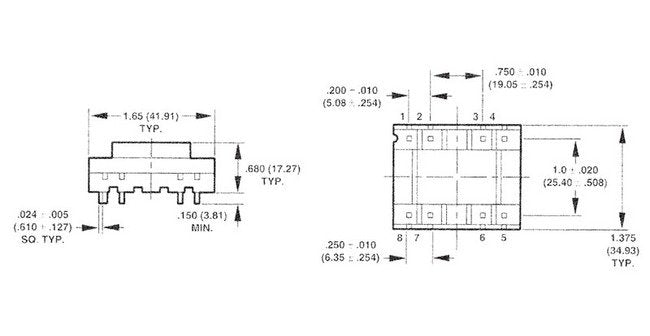

The Telecom Data/Voice Coupling Transformer from the TY series by Triad is a versatile solution designed to meet the rigorous requirements of access over leased private lines or dial-up networks. With exceptional impedance matching, isolation capabilities, line balancing, and compliance with FCC Part 68 standards, this transformer ensures reliable performance for bridging circuits, hybrid circuits, and more. Featuring a dielectric strength of 1500V and maximum input level of 5mW, it offers superior Longitudinal Balance of 45 dB to 60 dB across various frequency ranges. Ideal for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Max Dc Current
100 mA
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm
Specifications Schematic
Schematic 1
Specifications Secondary Impedance
600 Ohm
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.5 dB
Specifications Return Loss
10 dB
Technical Notes 0
Primary connections shown on left side of schematics.
