Telecom Data/Voice Coupling Transformer
Telecom Data/Voice Coupling Transformer
SKU:AUD-3668b0
Upgrade your telecommunications with our FCC Part 68 compliant Data/Voice Coupling Transformer. Ensures superior performance in impedance matching and isolation.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Telecom Data/Voice Coupling Transformer
$45.99
Quantity: 1
Claim Your Seller Account
Telecom Data/Voice Coupling Transformer
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

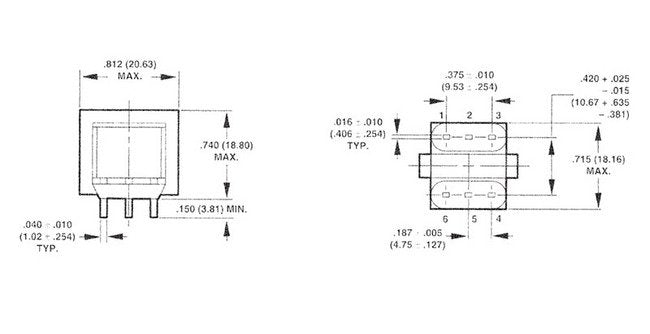

Enhance your telecommunications setup with the Telecom Data/Voice Coupling Transformer from the TY series. This transformer is expertly designed for impedance matching, isolation, repeat coil, line balancing, bridging, and hybrid circuits, meeting FCC Part 68 standards. With a dielectric strength of 1500 V and optimal longitudinal balance frequencies, this transformer ensures reliable performance across various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm
Specifications Schematic
Schematic 4
Specifications Secondary Impedance
600 Ohm
Specifications Transformer Contact Type
Center Tap
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.0 dB
Specifications Return Loss
26 dB
Technical Notes 0
Primary connections shown on left side of schematics.
