Telecom Data/Voice Coupling Transformer TY Series
Telecom Data/Voice Coupling Transformer TY Series
SKU:AUD-de78b1
Enhance communication systems with TY Series Data/Voice Coupling Transformer. FCC Part 68 compliant, ideal for bridging & hybrid circuits.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Telecom Data/Voice Coupling Transformer TY Series
$45.99
Quantity: 1
Claim Your Seller Account
Telecom Data/Voice Coupling Transformer TY Series
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

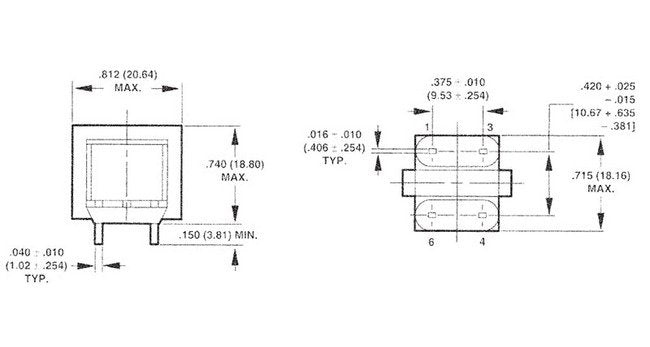

Enhance your communication systems with the TY series Data/Voice Coupling Transformer designed for impedance matching, isolation, repeat coil, and more. With a dielectric strength of 1500V and FCC Part 68 compliance, this transformer ensures reliable performance. Featuring a primary impedance of 4000 Ohm, secondary impedance of 600 Ohm, and a frequency range of 300-3500 Hz for data/voice applications, it delivers exceptional longitudinal balance and typical insertion loss of 1.0 dB. Perfect for bridging circuits, hybrid circuits, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
4000 Ohm
Specifications Schematic
Schematic 6
Specifications Secondary Impedance
600 Ohm
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.0 dB
Specifications Return Loss
26 dB
Technical Notes 0
Primary connections shown on left side of schematics.
