Telecom Impedance Matching Transformer
Telecom Impedance Matching Transformer
SKU:AUD-65f06c
Meet telecom requirements with precision. Longitudinal Balance up to 60 dB, Dielectric Strength 1500 V, and 300-3500 Hz Frequency Range. FCC Part 68 compliant.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Telecom Impedance Matching Transformer
$45.99
Quantity: 1
Claim Your Seller Account
Telecom Impedance Matching Transformer
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

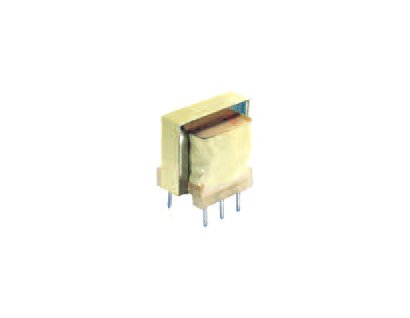

The Telecom Impedance Matching Transformer is a versatile solution for telecommunications applications, providing impedance matching, isolation, line balancing, and more. Compliant with FCC Part 68 standards, it offers a Longitudinal Balance of up to 60 dB, Dielectric Strength of 1500 V, and a Frequency Range of 300 to 3500 Hz. With Primary and Secondary Impedances of 600 Ohm each, this transformer ensures reliable performance and durability. Ideal for bridging circuits, hybrid circuits, and repeat coil applications.
Product Specifications
Applications 0
Bridging Circuits | Hybrid Circuits | Impedance Matching | Isolation | Line Balancing | Repeat Coil
Specifications Dielectric Strength Fcc 68304
1500 V
Specifications Frequency Range Data
800 to 3500 Hz
Specifications Frequency Range Datavoice
300 to 3500 Hz
Specifications Industry Standards
FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance
Specifications Longitudinal Balance Frequency
1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB
Specifications Maximum Input Level
5 mW
Specifications Min Longitudinal Balance
45 dB | 60 dB
Specifications Primary Impedance
600 Ohm

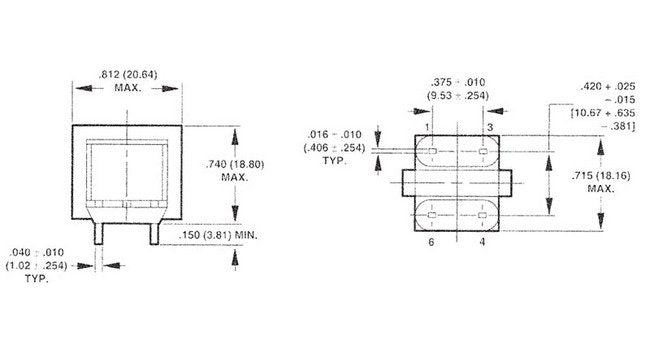

Specifications Schematic
Schematic 3
Specifications Secondary Impedance
600 Ohm
Specifications Frequency Response
±0.5 dB
Specifications Insertion Loss
1.0 dB
Specifications Return Loss
26 dB
Technical Notes 0
Primary connections shown on left side of schematics.
