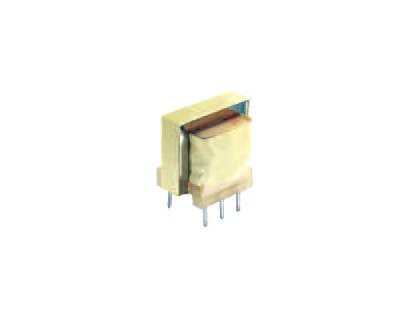

Telecommunications Data/Voice Coupling Transformer

Name: Telecommunications Data/Voice Coupling Transformer
Brand: Triad Magnetics
SKU: AUD-e4f2ef
Price: 129.99 USD
Availability: OutOfStock

SKU:AUD-e4f2ef

Enhance data and voice communications with this FCC Part 68 compliant transformer for optimal performance and security.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Telecommunications Data/Voice Coupling Transformer from Triad is engineered to meet the demands of access over private leased lines or dial-up telephone networks. Ideal for impedance matching, isolation, repeat coil, line balancing, bridging, and hybrid circuits, this transformer is designed to meet FCC Part 68 standards. With features like a dielectric strength of 1500V, longitudinal balance up to 60dB, and primary impedance of 600 Ohms, this transformer ensures reliable and secure data and voice communications in institutional settings.

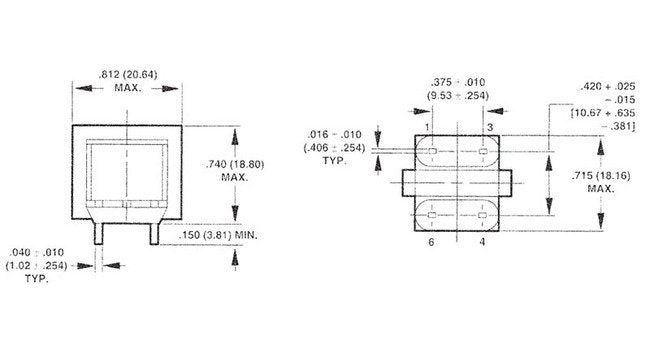

Product Specifications

Applications 0

Specifications Dielectric Strength Fcc 68304

1500 V

Specifications Frequency Range Data

800 to 3500 Hz

Specifications Frequency Range Datavoice

300 to 3500 Hz

Specifications Industry Standards

FCC 68.304 for Dielectric Strength | FCC 68.310 for Longitudinal Balance

Specifications Longitudinal Balance Frequency

1000 to 4000 Hz at 45 dB | 200 to 1000 Hz at 60 dB

Specifications Maximum Input Level

5 mW

Specifications Min Longitudinal Balance

45 dB | 60 dB

Specifications Primary Impedance

600 Ohm

Specifications Schematic

Schematic 5

Specifications Secondary Impedance

900 Ohm

Specifications Frequency Response

Â±0.5 dB

Specifications Insertion Loss

1.0 dB

Specifications Return Loss

26 dB

Technical Notes 0

Primary connections shown on left side of schematics.
