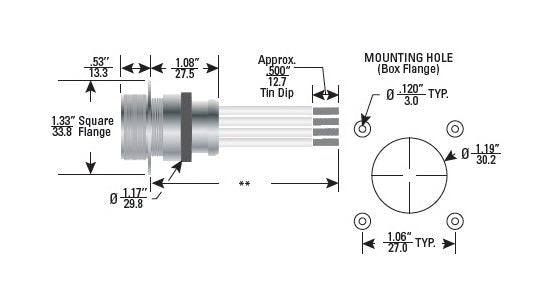

Teledyne 1804 Series 4 Pin Threaded Box Flange Receptacle Cable Assembly
Teledyne 1804 Series 4 Pin Threaded Box Flange Receptacle Cable Assembly
SKU:HIG-bd438e
Teledyne 1804 Series 4 Pin Threaded Box Flange Receptacle - High-voltage solution for military, aerospace, and industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Teledyne 1804 Series 4 Pin Threaded Box Flange Receptacle Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
Teledyne 1804 Series 4 Pin Threaded Box Flange Receptacle Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne 1804 Series 4 Pin Non-Sealed, Front Mount, Box Flange Receptacle Cable Assembly is a ruggedized high-voltage solution designed for demanding applications. With a voltage rating of 15 kVDC and a current rating of 7.5 A, this connector excels in military, aerospace, and industrial settings. The threaded coupling nut ensures secure connections, while the aluminum construction with nickel finish provides durability. The BeCu contacts with gold finish offer reliable conductivity, and the insulator material ensures safe operation in temperatures ranging from -55 to 125 ºC. Teledyne Reynold's manufacturing expertise and customizable options make this cable assembly a versatile choice for diverse projects.
Product Specifications
Specifications Altitude Rating
70,000 ft
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Contact Finish
Gold with CRES Hood
Specifications Contact Material
BeCu
Specifications Coupling Nut Finish
Nickel
Specifications Coupling Nut Material
Aluminum
Specifications Coupling Style
Threaded
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
1804
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
