Teledyne PeeWee Right Angle 12 kVDC Plug Cable Assembly
Teledyne PeeWee Right Angle 12 kVDC Plug Cable Assembly
SKU:HIG-1580c3
Teledyne PeeWee Series Plug Cable Assembly: High voltage, right angle design, threaded coupling, 12 kVDC rating, wide temp range. Ideal for compact high voltage applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Teledyne PeeWee Right Angle 12 kVDC Plug Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
Teledyne PeeWee Right Angle 12 kVDC Plug Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Teledyne PeeWee Series Plug Cable Assembly is designed for high voltage applications requiring compact connectors. Featuring the patented Advanced Interface⢠method, this single-ended right angle plug assembly is rated at 12 kVDC at 70,000 feet, with a wide temperature range of -55°C to 125°C. With threaded coupling and compatibility with non-threaded PeeWee series, it ensures secure connections in various environments. The encapsulated back end, plastic insulator, and etched FEP NOMEX® wire insulation provide durability and safety, making it ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

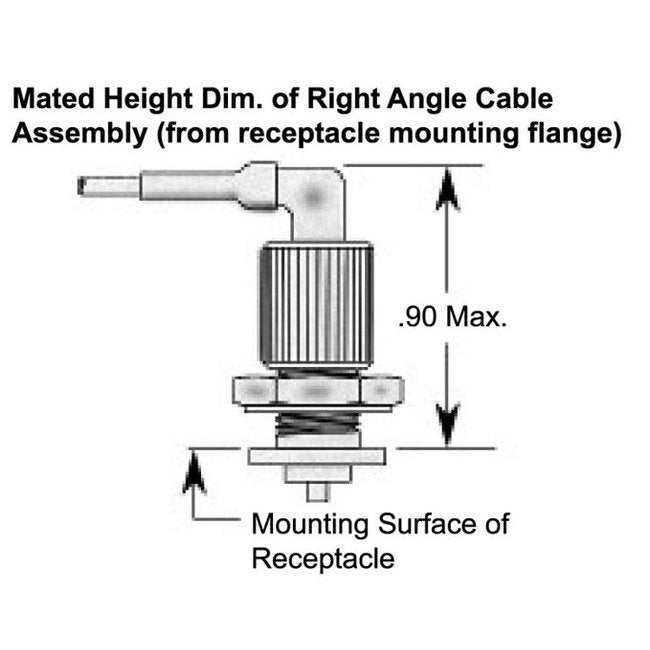

Single-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP NOMEX®
Specifications Wire Pn
178-8118
