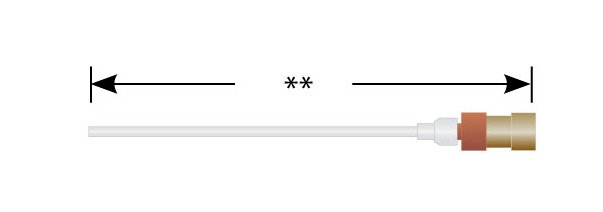

The Teledyne PeeWee Series Receptacle Cable Assembly is a subminiature high-voltage connector designed for dense electronic packaging in high voltage applications. Utilizing Teledyne Reynold's patented Advanced Interface method, it seals high voltage at reduced atmospheric pressure, achieving a 12 kVDC rating at 70,000 feet elevation with an operating temperature range of -55°C to 125°C. With features like a Push-Pull Coupling, Single-Ended Straight Assembly, and Silicone Rubber Interface Seal, this assembly ensures reliable performance in demanding environments like lasers, photomultipliers, power supplies, and TWT devices.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.050 in
Contact Properties Contact Design
Spherical Radius, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plated
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Straight Receptacle Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Interface Seal
Silicone Rubber
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Etched FEP
Specifications Wire Pn
178-8111
