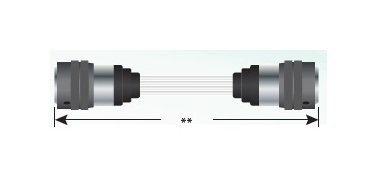

Teledyne Reynold 1804 Series 4 Pin Double-Ended Threaded Shielded Plug Cable Assembly
Teledyne Reynold 1804 Series 4 Pin Double-Ended Threaded Shielded Plug Cable Assembly
SKU:HIG-68f106
High-performance 15 kVDC cable assembly with 4-pin double-ended threaded shielded plug kits for rugged applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Teledyne Reynold 1804 Series 4 Pin Double-Ended Threaded Shielded Plug Cable Assembly
$249.99
Quantity: 1
Claim Your Seller Account
Teledyne Reynold 1804 Series 4 Pin Double-Ended Threaded Shielded Plug Cable Assembly
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unrivaled durability and performance with the Teledyne Reynold 1804 Series 4 Pin Double-Ended Threaded Shielded Plug Cable Assembly. Designed for high-voltage applications up to 15 kVDC, this cable assembly boasts a robust construction that meets stringent military and aerospace standards. With features like a silicone insulator, gold-finished brass contacts, and aluminum coupling nuts with nickel finish, it ensures reliable connectivity in extreme environments. The shielded plug kits allow for secure connections in customer-fabricated cable assemblies, making it a preferred choice for defense, space, and other high-tech industries.
Product Specifications
Specifications Altitude Rating
70,000 ft
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Contact Finish
Gold
Specifications Contact Material
Brass
Specifications Coupling Nut Finish
Nickel
Specifications Coupling Nut Material
Aluminum
Specifications Coupling Style
Threaded
Specifications Current Rating
7.5 A
Specifications Insulator Material
Silicone
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Number Of Contacts
4
Specifications Operating Temperature
-55 to 125 ºC
Specifications Series
1804
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
Shielded
Wire Specifications Attenuation At 400 Mhz
10.6 db/100 ft
Wire Specifications Capacitance Nominal At 1 Khz
31 pF/ft
Wire Specifications Conductor Awg
22
Wire Specifications Conductor Plating
SPC
Wire Specifications Conductor Strands
19/34
Wire Specifications Impedance
43 O
Wire Specifications Insulation Material
FEP
Wire Specifications Insulator Diameter
0.080 in | 2.03 mm
Wire Specifications Jacket Diameter
0.125 in | 3.18 mm
Wire Specifications Jacket Material
FEP
Wire Specifications Operating Voltage
22 kVDC
Wire Specifications Part
167-9346
Wire Specifications Shielding Awg
36
Wire Specifications Shielding Diameter
0.100 in | 2.54 mm
Wire Specifications Shielding Plating
SPC
